SUN HYDRAULICS
ELI

$49.84 USD

SUN HYDRAULICS
Material:ELI
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

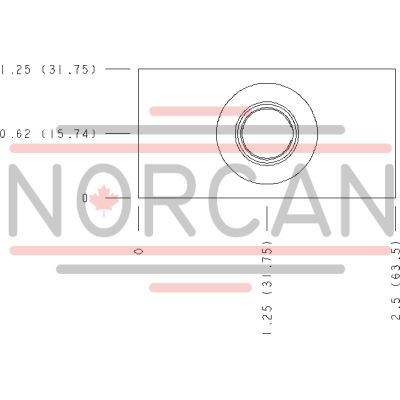

The Sun Hydraulics ELI (Material Number: ELI) is a line mount manifold designed for high-capacity hydraulic applications. This model features a ninety-degree configuration with a high-capacity port 3 and an additional gauge port, facilitating efficient fluid management in complex hydraulic systems. Constructed from 6061-T651 aluminum, the manifold offers excellent corrosion resistance and durability, making it suitable for demanding environments. The manifold includes two through mounting holes with a diameter of 0.34 inches (8.6 mm), ensuring secure installation in various setups. It is designed with an open cavity type T11A and accommodates SAE 6 port sizes, allowing for compatibility with standard hydraulic fittings. The ELI manifold is engineered to handle pressures up to 3000 psi (210 bar), which is the maximum rating for aluminum manifolds due to material constraints. This makes it suitable for medium-pressure systems where reliability and performance are critical. The design does not include anodization, as Sun Hydraulics prioritizes maintaining the material's natural fatigue life and avoiding potential drawbacks associated with anodizing processes. This manifold is ideal for use in hydraulic systems requiring efficient flow management and pressure control without compromising on structural integrity or longevity. Its robust construction and thoughtful design make it a reliable choice for engineers looking to optimize their hydraulic circuits while ensuring ease of integration and maintenance.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree with high capacity port 3 and gauge portNinety degree with high capacity port 3 and gauge port
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-11A
Port Size	SAE 6SAE 6

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
