SUN HYDRAULICS
FCCBLBN
$122.91 USD
- SUN HYDRAULICS
- Material:FCCBLBN
- Model:FCCB-LBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FCCBLBN (FCCBLBN) is a fixed-orifice, pressure-compensated flow control valve with a reverse flow check, designed to provide precise flow regulation in meter-in or meter-out applications where there may be significant pressure fluctuations. It features an integral high-capacity check valve that allows for unrestricted flow from port 2 to port 1. Users can specify the desired flow setting, which is factory-set with a precision of \u00b110% of the requested value. The sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity. Additionally, it offers a tunable control option that allows for a \u00b125% adjustment from the nominal factory preset flow by turning the adjustment screw clockwise. The FCCBLBN model is part of Sun Hydraulics' Series 1 and fits into cavity T-13A. It has a capacity of 6 gallons per minute (23 liters per minute) and can operate at a maximum pressure of 5000 psi (350 bar). The valve's hex size is 7/8 inches (22.2 mm), with an installation torque requirement of 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm) with a torque specification of 80-90 lbf-in (9-10 Nm). Weighing just .30 lb (.15 kg), this corrosion-resistant cartridge valve is suitable for use in corrosive environments, available with external stainless steel or zinc-nickel plated components. Incorporating Sun's floating style construction, this model minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities and cartridges. Its design ensures that all two-port flow control cartridges are physically and functionally interchangeable within the same frame size, though cartridge extension dimensions may vary from the mounting surface.
The Sun Hydraulics FCCBLBN (FCCBLBN) is a fixed-orifice, pressure-compensated flow control valve with a reverse flow check, designed to provide precise flow regulation in meter-in or meter-out applications where there may be significant pressure fluctuations. It features an integral high-capacity check valve that allows for unrestricted flow from port 2 to port 1. Users can specify the desired flow setting, which is factory-set with a precision of \u00b110% of the requested value. The sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity. Additionally, it offers a tunable control option that allows for a \u00b125% adjustment from the nominal factory preset flow by turning the adjustment screw clockwise. The FCCBLBN model is part of Sun Hydraulics' Series 1 and fits into cavity T-13A. It has a capacity of 6 gallons per minute (23 liters per minute) and can operate at a maximum pressure of 5000 psi (350 bar). The valve's hex size is 7/8 inches (22.2 mm), with an installation torque requirement of 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm) with a torque specification of 80-90 lbf-in (9-10 Nm). Weighing just .30 lb (.15 kg), this corrosion-resistant cartridge valve is suitable for use in corrosive environments, available with external stainless steel or zinc-nickel plated components. Incorporating Sun's floating style construction, this model minimizes the risk of internal parts binding due to excessive installation torque or machining variations in cavities and cartridges. Its design ensures that all two-port flow control cartridges are physically and functionally interchangeable within the same frame size, though cartridge extension dimensions may vary from the mounting surface.

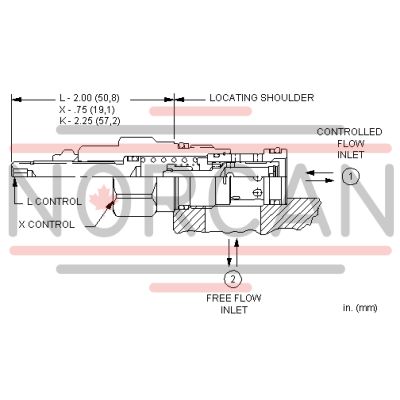

Fixed-orifice, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The flow setting is specified by the user and is set at the factory.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The tuneable control option provides +/- 25% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
