SUN HYDRAULICS
FCEBKAV
$226.76 USD
- SUN HYDRAULICS
- Material:FCEBKAV
- Model:FCEB-KAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FCEBKAV (FCEBKAV) is a fixed orifice, pressure-compensated flow control valve with reverse flow check, designed for precise flow regulation in meter-in or meter-out applications where there may be significant pressure fluctuations. This model features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. Users specify the desired flow rating, which is set at the factory within a 10% accuracy of the requested setting. The sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, ensuring consistent performance. All two-port flow control cartridges are interchangeable in terms of flow path and cavity size for a given frame size, though extension dimensions may vary. The FCEBKAV model includes a tunable control option providing up to a 22% variation from the nominal factory preset flow, with clockwise adjustments increasing the flow rate. It is suitable for corrosive environments and can be configured with external stainless steel components (suffix AP) or zinc-nickel plated components (suffix LH). The cartridge incorporates Sun's floating style construction to prevent internal parts from binding due to excessive installation torque or machining variations. This valve fits into cavity T16A and belongs to series 3, with a capacity of up to 25 gpm (95 L/min) and a maximum operating pressure of 5000 psi (350 bar). The valve hex size is 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf\u00b7ft (203-217 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm), necessitating a torque of 80-90 lbf\u00b7in (9-10 Nm). The model weighs approximately 1.00 lb (0.45 kg) and uses Viton seal kits available under part number 990016006.
The Sun Hydraulics FCEBKAV (FCEBKAV) is a fixed orifice, pressure-compensated flow control valve with reverse flow check, designed for precise flow regulation in meter-in or meter-out applications where there may be significant pressure fluctuations. This model features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. Users specify the desired flow rating, which is set at the factory within a 10% accuracy of the requested setting. The sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, ensuring consistent performance. All two-port flow control cartridges are interchangeable in terms of flow path and cavity size for a given frame size, though extension dimensions may vary. The FCEBKAV model includes a tunable control option providing up to a 22% variation from the nominal factory preset flow, with clockwise adjustments increasing the flow rate. It is suitable for corrosive environments and can be configured with external stainless steel components (suffix AP) or zinc-nickel plated components (suffix LH). The cartridge incorporates Sun's floating style construction to prevent internal parts from binding due to excessive installation torque or machining variations. This valve fits into cavity T16A and belongs to series 3, with a capacity of up to 25 gpm (95 L/min) and a maximum operating pressure of 5000 psi (350 bar). The valve hex size is 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf\u00b7ft (203-217 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm), necessitating a torque of 80-90 lbf\u00b7in (9-10 Nm). The model weighs approximately 1.00 lb (0.45 kg) and uses Viton seal kits available under part number 990016006.

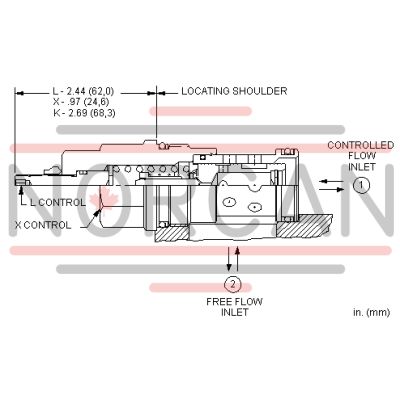

Fixed-orifice, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The flow setting is specified by the user and is set at the factory.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- The tuneable control option provides +/- 22% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.00 lb0,45 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
