SUN HYDRAULICS
FCEBMAV
$218.82 USD
- SUN HYDRAULICS
- Material:FCEBMAV
- Model:FCEB-MAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FCEBMAV (Material Number: FCEBMAV) is a fixed orifice, pressure-compensated flow control valve with a reverse flow check feature. It is designed to provide precise flow regulation for meter-in or meter-out applications, especially where there are significant pressure fluctuations. The valve incorporates an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The flow setting is specified by the user and factory-set with accuracy within 10% of the requested setting, while the sharp-edged orifice design minimizes variations due to viscosity changes. This model supports a capacity of up to 25 gpm (95 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The FCEBMAV features a tuneable control option allowing for a 22% variation from the nominal factory preset flow, adjustable via an internal hex screw. It is built using Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. This model fits into cavity T-16A and belongs to series 3, with interchangeable functionality across all two-port flow control cartridges of similar frame size. Corrosion-resistant options are available for use in harsh environments, identified by suffixes AP or LH in the model code for external stainless steel or zinc-nickel plated components respectively. Installation requires a torque between 150-160 lbf ft (203-217 Nm), and it includes additional specifications such as a valve hex size of 1-1/4 inches (31.8 mm), adjustment screw internal hex size of 5/32 inches (4 mm), and locknut hex size of 9/16 inches (15 mm) with torque settings between 80-90 lbf in (9-10 Nm).
The Sun Hydraulics FCEBMAV (Material Number: FCEBMAV) is a fixed orifice, pressure-compensated flow control valve with a reverse flow check feature. It is designed to provide precise flow regulation for meter-in or meter-out applications, especially where there are significant pressure fluctuations. The valve incorporates an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The flow setting is specified by the user and factory-set with accuracy within 10% of the requested setting, while the sharp-edged orifice design minimizes variations due to viscosity changes. This model supports a capacity of up to 25 gpm (95 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The FCEBMAV features a tuneable control option allowing for a 22% variation from the nominal factory preset flow, adjustable via an internal hex screw. It is built using Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. This model fits into cavity T-16A and belongs to series 3, with interchangeable functionality across all two-port flow control cartridges of similar frame size. Corrosion-resistant options are available for use in harsh environments, identified by suffixes AP or LH in the model code for external stainless steel or zinc-nickel plated components respectively. Installation requires a torque between 150-160 lbf ft (203-217 Nm), and it includes additional specifications such as a valve hex size of 1-1/4 inches (31.8 mm), adjustment screw internal hex size of 5/32 inches (4 mm), and locknut hex size of 9/16 inches (15 mm) with torque settings between 80-90 lbf in (9-10 Nm).

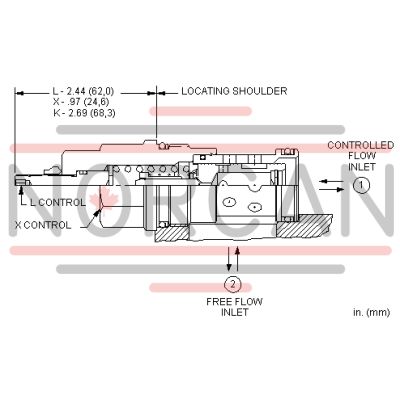

Fixed-orifice, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The flow setting is specified by the user and is set at the factory.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- The tuneable control option provides +/- 22% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.00 lb0,45 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
