SUN HYDRAULICS
FCFBLAN

$402.28 USD

SUN HYDRAULICS
Material:FCFBLAN
Model:FCFB-LAN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FCFBLAN (Material Number: FCFBLAN) is a fixed orifice, pressure-compensated flow control valve with a reverse flow check, designed to provide precise flow regulation for meter-in or meter-out applications in situations where there may be significant pressure fluctuations. This model features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The user specifies the flow setting, which is factory set and can be adjusted within a 10% range of the requested setting. Additionally, the tuneable control option offers a 20% variation from the nominal factory preset flow. The adjustment can be increased by turning it clockwise. All two-port flow control cartridges are interchangeable in terms of flow path and cavity for a given frame size, though cartridge extension dimensions from the mounting surface may vary. The sharp-edged orifice design minimizes variations in flow due to changes in viscosity, while Sun's floating style construction reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model fits into the T-18A cavity and belongs to Series 4 with a capacity of up to 50 gpm (200 L/min) and a maximum operating pressure of 5000 psi (350 bar). It has a valve hex size of 1-5/8 inches (41.3 mm) and requires an installation torque between 350-375 lbf ft (475-508 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm) with torque settings between 80-90 lbf in (9-10 Nm). This model weighs approximately 1.00 lb (0.45 kg) and includes a Viton seal kit with cartridge number 990018006.

Description

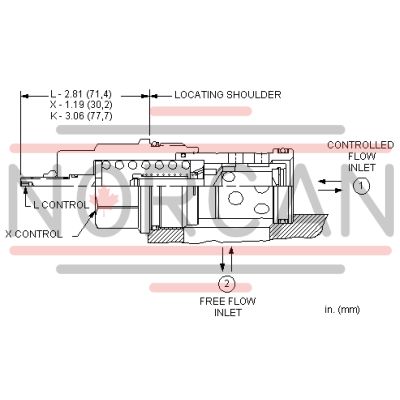

Fixed-orifice, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. The flow setting is specified by the user and is set at the factory.

Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
The tuneable control option provides +/- 20% variation from the nominal factory pre-set flow. Turn the adjustment clockwise to increase.
All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-18A
Series	4
Capacity	50 gpm200 L/min.
Maximum Operating Pressure	5000 psi350 bar
Valve Hex Size	1 5/8 in.41,3 mm
Valve Installation Torque	350 - 375 lbf ft475 - 508 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.00 lb0,45 kg
Seal kit - Cartridge	Viton: 990-018-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
