SUN HYDRAULICS
FDBALCE
$414.10 USD
- SUN HYDRAULICS
- Material:FDBALCE
- Model:FDBA-LCE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FDBALCE (Material Number: FDBALCE) is a fully adjustable, pressure-compensated flow control valve designed for precise regulation in meter-in or meter-out applications where pressure fluctuations may occur. This model features a reverse-flow check valve that allows unrestricted flow from port 2 to port 1 and is suitable for systems requiring consistent performance even under varying pressures. The valve is infinitely adjustable from nearly closed to the maximum flow capacity of 6 gpm (23 L/min), with an adjustment range of 5.5 counterclockwise turns from fully closed to fully open. This cartridge-style flow control valve is part of Series 1 and fits into a T-13A cavity, making it interchangeable with other similar-sized cartridges in terms of flow path and cavity dimensions. However, users should note that extension dimensions from the mounting surface may differ among models. The balanced adjustment mechanism ensures ease of operation even at high pressures, while the sharp-edged orifice design minimizes variations due to changes in fluid viscosity. The FDBALCE model boasts a minimal leakage rate of .1 gpm (.4 L/min) when set to the shutoff position, ensuring efficient operation. It is important to use cartridges with EPDM seals only in systems with phosphate ester fluids, as exposure to petroleum-based fluids can damage these seals. The valve can withstand a maximum operating pressure of 5000 psi (350 bar) and requires specific installation torques for optimal performance: 30-35 lbf ft (41-47 Nm) for the valve installation and 80-90 lbf in (9-10 Nm) for the locknut. Additionally, this model includes an internal hex size adjustment screw measuring 5/32 inches (4 mm), a valve hex size of 7/8 inches (22.2 mm), and a locknut hex size of 9/16 inches (15 mm). With its robust design and precise control capabilities, the Sun Hydraulics FDBALCE is ideal for applications demanding reliable flow management under varying conditions.
The Sun Hydraulics FDBALCE (Material Number: FDBALCE) is a fully adjustable, pressure-compensated flow control valve designed for precise regulation in meter-in or meter-out applications where pressure fluctuations may occur. This model features a reverse-flow check valve that allows unrestricted flow from port 2 to port 1 and is suitable for systems requiring consistent performance even under varying pressures. The valve is infinitely adjustable from nearly closed to the maximum flow capacity of 6 gpm (23 L/min), with an adjustment range of 5.5 counterclockwise turns from fully closed to fully open. This cartridge-style flow control valve is part of Series 1 and fits into a T-13A cavity, making it interchangeable with other similar-sized cartridges in terms of flow path and cavity dimensions. However, users should note that extension dimensions from the mounting surface may differ among models. The balanced adjustment mechanism ensures ease of operation even at high pressures, while the sharp-edged orifice design minimizes variations due to changes in fluid viscosity. The FDBALCE model boasts a minimal leakage rate of .1 gpm (.4 L/min) when set to the shutoff position, ensuring efficient operation. It is important to use cartridges with EPDM seals only in systems with phosphate ester fluids, as exposure to petroleum-based fluids can damage these seals. The valve can withstand a maximum operating pressure of 5000 psi (350 bar) and requires specific installation torques for optimal performance: 30-35 lbf ft (41-47 Nm) for the valve installation and 80-90 lbf in (9-10 Nm) for the locknut. Additionally, this model includes an internal hex size adjustment screw measuring 5/32 inches (4 mm), a valve hex size of 7/8 inches (22.2 mm), and a locknut hex size of 9/16 inches (15 mm). With its robust design and precise control capabilities, the Sun Hydraulics FDBALCE is ideal for applications demanding reliable flow management under varying conditions.

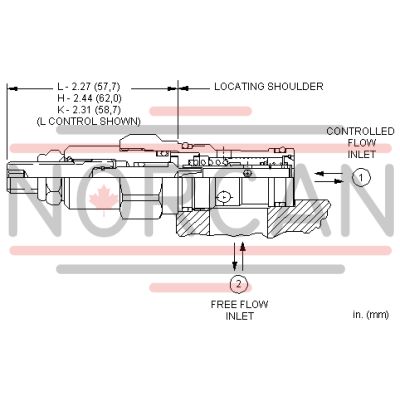

Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Minimum leakage is .1 gpm (0,4 L/min) when the adjustment mechanism is turned to the shut-off position.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
