SUN HYDRAULICS
FDEAKBN

$258.52 USD

SUN HYDRAULICS
Material:FDEAKBN
Model:FDEA-KBN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FDEAKBN (FDEAKBN) is a fully adjustable, pressure-compensated flow control valve designed for precise flow regulation in applications with varying pressure conditions. This model features reverse-flow check capabilities, allowing for unrestricted flow from port 2 to port 1. It is suitable for both meter-in and meter-out applications, making it versatile for different hydraulic systems. The FDEAKBN can be adjusted from nearly closed to its maximum flow capacity of 25 gpm (95 L/min), with a balanced adjustment mechanism that ensures ease of use even at high pressures. The sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance. This cartridge valve fits the T16A cavity and belongs to Series 3, supporting a maximum operating pressure of up to 5000 psi (350 bar). It features an integral high-capacity check valve and a minimum leakage rate of .2 gpm (.8 L/min) when fully closed. For installation, the valve requires a torque between 150 - 160 lbf ft (203 - 217 Nm), with an internal hex size of 5/32 in. (4 mm) for the adjustment screw and a locknut hex size of 9/16 in. (15 mm). The locknut torque ranges from 80 - 90 lbf in. (9 - 10 Nm). Weighing approximately 1.25 lb (.60 kg), this model ensures durability and reliability in demanding environments. It is interchangeable with other Sun Hydraulics' two-port flow control cartridges of the same frame size, offering flexibility in system design without altering flow paths or cavity requirements. This product also includes a Viton seal kit under part number 990-016-006, ensuring compatibility and ease of maintenance within hydraulic systems requiring high precision and stability under fluctuating pressures.

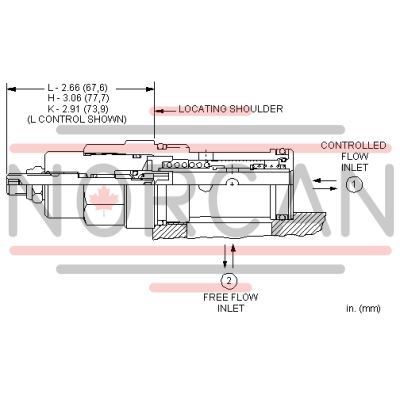

Description

Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
A balanced adjustment mechanism allows for easy adjustment even at high pressures.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.

Cavity	T-16A
Series	3
Capacity	25 gpm95 L/min.
Maximum Operating Pressure	5000 psi350 bar
Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.25 lb0,60 kg
Seal kit - Cartridge	Viton: 990-016-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
