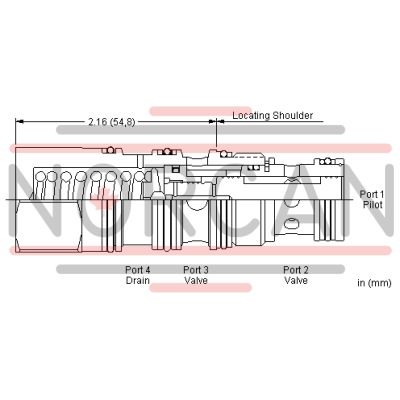

The Sun Hydraulics FKDALCV (FKDALCV) is a 2-way, 2-position proportional throttle valve designed to provide precise flow control in hydraulic systems. This valve features ports 2 and 3 that are normally closed, with pilot pressure applied at port 1 creating a metering orifice between ports 2 and 3, proportional to the pressure at port 1. This design incorporates a force balance of flow forces, springs, and pilot pressure, allowing for partial self-compensation as load pressure changes. The valve can be further pressure compensated by using an external modulating logic element like the LRCXHN for bypass circuits or LPCXHN for restrictive circuits. The FKDALCV valve supports a maximum operating pressure of 5000 psi (350 bar) and offers a capacity of up to 10 gpm (40 L/min). It incorporates Sun's floating style construction to minimize internal part binding due to installation torque or cavity-cartridge machining variations. Ports 1 and 4 should be limited to pressures of up to 500 psi (35 bar), with port 4 directly opposing the pressure at port 1. For enhanced accuracy in flow control across varying flows and pressures, an external modulating logic element may be used. The optional tuning adjustment 'L' control allows manual variation of pilot pressure required for flow control within an adjustment range of 50-300 psi (3.5-20 bar), with a standard setting of 100 psi (7 bar). The valve's hysteresis is rated at \u00b12%, ensuring reliable performance in dynamic applications. The FKDALCV is suitable for applications requiring precise and adjustable flow regulation, making it ideal for situations demanding consistent performance under changing load conditions while maintaining accurate flow control through self-compensation capabilities.

Description

This valve is a 2-way, 2 position, proportional throttle. Ports 2 and 3 are normally closed. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The force balance of the flow forces, spring and pilot pressure results in a degree of partial self-compensation as the load pressure changes.

Pressure at port 4 directly opposes pressure at port 1.

These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
Ports 1 and 4 should be limited to 500 psi (35 bar).
Pressure at port 4 directly opposes pressure at port 1.
An optional tuning adjustment (L control) is offered to vary the pilot pressure required to control flow. The tuning adjustment provides a means to manually increase or decrease flow at a given pilot pressure. The adjustment range is 50 - 300 psi (3,5 - 20 bar), 100 psi (7 bar) Standard Setting.
Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-22A
Series	2
Capacity	10 gpm40 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)	2 in³/min.@1000 psi30 cc/min.@70 bar
Pilot Volume Displacement	.03 in³.03 in³
Minimum Pilot Pressure to Operate	100 psi7 bar
Hysteresis	± 2 %± 2 %
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-022-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
