SUN HYDRAULICS
FKFAXCN

$298.54 USD

SUN HYDRAULICS
Material:FKFAXCN
Model:FKFA-XCN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FKFAXCN (FKFAXCN) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve features ports 2 and 3 that are normally closed, with pilot pressure at port 1 creating a metering orifice between ports 2 and 3 proportional to the pressure at port 1. This mechanism allows for partial self-compensation as load pressure changes. The valve can be further pressure compensated using an external modulating logic element, such as the LRCXHN for bypass circuits or LPCXHN for restrictive circuits, enhancing its role as a flow control device. It incorporates Sun's floating style construction to minimize internal part binding due to installation torque or machining variations. The FKFAXCN model operates within a cavity T-23A and is part of series 3 with a capacity of up to 20 gpm (80 L/min) and a maximum operating pressure of 5000 psi (350 bar). It has a maximum valve leakage of 4 in\u00b3/min (65 cc/min) at standard testing conditions and requires a minimum pilot pressure of 100 psi (7 bar) to operate effectively. The valve allows for manual tuning adjustments to vary the pilot pressure needed for flow control, with an adjustment range between 50-250 psi (3.5-15 bar). This model is suitable for applications requiring accurate flow regulation under varying pressures and can be utilized in systems where maintaining a constant pressure differential across the valve is critical. The optional tuning adjustment enhances its adaptability, making it ideal for systems demanding precise manual control over hydraulic flow rates.

Description

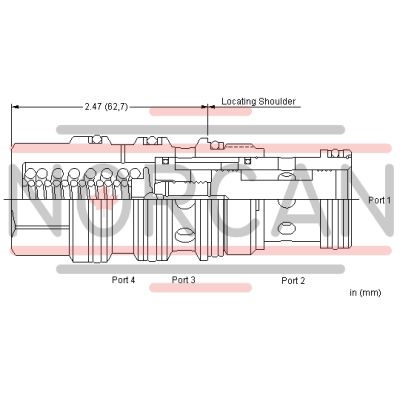

This valve is a 2-way, 2 position, proportional throttle. Ports 2 and 3 are normally closed. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The force balance of the flow forces, spring and pilot pressure results in a degree of partial self-compensation as the load pressure changes.

Pressure at port 4 directly opposes pressure at port 1.

These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
Ports 1 and 4 should be limited to 500 psi (35 bar).
Pressure at port 4 directly opposes pressure at port 1.
An optional tuning adjustment (L control) is offered to vary the pilot pressure required to control flow. The tuning adjustment provides a means to manually increase or decrease flow at a given pilot pressure. The adjustment range is 50 - 250 psi (3,5 - 15 bar), 100 psi (7 bar) Standard Setting.
Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-23A
Series	3
Capacity	20 gpm80 L/min.
Maximum Operating Pressure	5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)	4 in³/min.@1000 psi65 cc/min.@70 bar
Pilot Volume Displacement	.10 in³1,6 cc
Minimum Pilot Pressure to Operate	100 psi7 bar
Hysteresis	± 2 %± 2 %
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Seal kit - Cartridge	Viton: 990-023-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
