SUN HYDRAULICS
FLDAXDN
$187.34 USD
- SUN HYDRAULICS
- Material:FLDAXDN
- Model:FLDA-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FLDAXDN (Material Number: FLDAXDN) is a high-performance filter element designed for hydraulic systems, specifically as a Surface Type Last Chance element. This component features a 304 stainless steel mesh media and all internal components are also constructed from 304 stainless steel, ensuring durability and resistance to corrosion. The filter is engineered with a flow path from Port 2 to Port 1 and should not be operated in reverse, even if a reverse free flow check valve is installed. It boasts a differential crush pressure of 3000 psid (210 bar), making it suitable for high-pressure applications. The FLDAXDN is intended to be installed directly above the subplate, providing protection for the entire valve stack from errant particles that may bypass the main system filter or arise from component failures. With a nominal rating of 40 microns and an absolute rating of 63 microns, this filter captures fine particles effectively. Its Surface Type design includes a single layer stainless steel mesh supported by a perforated sheet tube, which ensures strength and reliability. This filter element has a capacity of up to 10 gpm (40 L/min) and can withstand maximum operating pressures of up to 5000 psi (350 bar). The valve hex size is 7/8 inches (22.2 mm), with an installation torque requirement between 30-35 lbf ft (41-47 Nm). The use of Viton seals enhances its compatibility with various hydraulic fluids, contributing to its robust performance in demanding environments.
The Sun Hydraulics FLDAXDN (Material Number: FLDAXDN) is a high-performance filter element designed for hydraulic systems, specifically as a Surface Type Last Chance element. This component features a 304 stainless steel mesh media and all internal components are also constructed from 304 stainless steel, ensuring durability and resistance to corrosion. The filter is engineered with a flow path from Port 2 to Port 1 and should not be operated in reverse, even if a reverse free flow check valve is installed. It boasts a differential crush pressure of 3000 psid (210 bar), making it suitable for high-pressure applications. The FLDAXDN is intended to be installed directly above the subplate, providing protection for the entire valve stack from errant particles that may bypass the main system filter or arise from component failures. With a nominal rating of 40 microns and an absolute rating of 63 microns, this filter captures fine particles effectively. Its Surface Type design includes a single layer stainless steel mesh supported by a perforated sheet tube, which ensures strength and reliability. This filter element has a capacity of up to 10 gpm (40 L/min) and can withstand maximum operating pressures of up to 5000 psi (350 bar). The valve hex size is 7/8 inches (22.2 mm), with an installation torque requirement between 30-35 lbf ft (41-47 Nm). The use of Viton seals enhances its compatibility with various hydraulic fluids, contributing to its robust performance in demanding environments.
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.

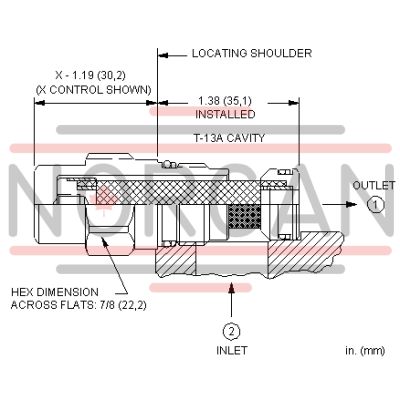

| Cavity | T-13A |
| Series | 1 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
