SUN HYDRAULICS
FLHAXAV
$235.79 USD
- SUN HYDRAULICS
- Material:FLHAXAV
- Model:FLHA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FLHAXAV (FLHAXAV) is a specialized filter element designed for hydraulic systems requiring high-performance filtration. This component is available in both Surface Type Last Chance and Depth Style configurations, ensuring versatile application across various systems. The flow path for this filter is strictly from Port 2 to Port 1, and it should not be reversed, even if a reverse free flow check valve is installed. The filter elements are engineered with a high collapse pressure, making them suitable for inline integration within the system. Installation directly above the subplate offers protection to the entire valve stack from contaminants. The Surface Type element features a 304 stainless steel mesh media with all internal components made of the same material, providing a nominal rating of 40 microns and an absolute rating of 63 microns. These elements are adept at capturing errant particles that might bypass the main system filter or result from component failures, thus offering an added layer of protection during sudden component malfunctions. For systems using phosphate ester fluids, cartridges with EPDM seals are recommended; however, these seals should not be exposed to petroleum-based fluids as they can cause damage. Depth Type elements come in nominal ranges of 3 m, 10 m, and 25 m with pleated microglass media and clear zinc-coated components. The FLHAXAV model fits into cavity T16A and belongs to Series 3 with a capacity of up to 40 gpm (160 L/min). It can handle a maximum operating pressure of 5000 psi (350 bar). The valve hex size is 1\u00bc inches (31.8 mm), and installation torque ranges between 150\u2013160 lbf\u00b7ft (203\u2013217 Nm). For maintenance, Viton seal kits are available under part number 990016006.
The Sun Hydraulics FLHAXAV (FLHAXAV) is a specialized filter element designed for hydraulic systems requiring high-performance filtration. This component is available in both Surface Type Last Chance and Depth Style configurations, ensuring versatile application across various systems. The flow path for this filter is strictly from Port 2 to Port 1, and it should not be reversed, even if a reverse free flow check valve is installed. The filter elements are engineered with a high collapse pressure, making them suitable for inline integration within the system. Installation directly above the subplate offers protection to the entire valve stack from contaminants. The Surface Type element features a 304 stainless steel mesh media with all internal components made of the same material, providing a nominal rating of 40 microns and an absolute rating of 63 microns. These elements are adept at capturing errant particles that might bypass the main system filter or result from component failures, thus offering an added layer of protection during sudden component malfunctions. For systems using phosphate ester fluids, cartridges with EPDM seals are recommended; however, these seals should not be exposed to petroleum-based fluids as they can cause damage. Depth Type elements come in nominal ranges of 3 m, 10 m, and 25 m with pleated microglass media and clear zinc-coated components. The FLHAXAV model fits into cavity T16A and belongs to Series 3 with a capacity of up to 40 gpm (160 L/min). It can handle a maximum operating pressure of 5000 psi (350 bar). The valve hex size is 1\u00bc inches (31.8 mm), and installation torque ranges between 150\u2013160 lbf\u00b7ft (203\u2013217 Nm). For maintenance, Viton seal kits are available under part number 990016006.
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.
- Depth type elements are available in 3 µm, 10 µm, and 25 µm nominal ranges.
- 3, 10, and 25 micron elements have a Beta ratio as shown in the Performance Curves tab.
- Depth Type elements feature a pleated microglass media with clear zinc coated components.

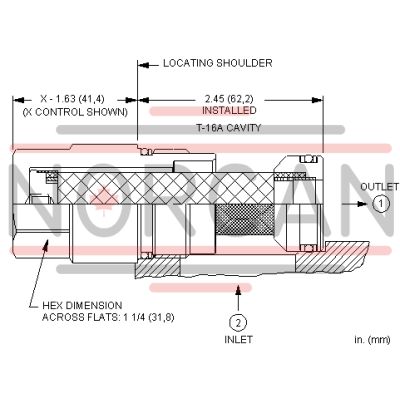

| Cavity | T-16A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
