SUN HYDRAULICS
FLHAXCN
$229.34 USD
- SUN HYDRAULICS
- Material:FLHAXCN
- Model:FLHA-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FLHAXCN (Material Number: FLHAXCN) is a robust filter element designed for hydraulic systems, available in both Surface Type Last Chance and Depth Style configurations. It features a flow path from Port 2 to Port 1, which should not be reversed even with a reverse free flow check valve installed. These elements are engineered with high collapse pressure to be used inline with the system, ensuring protection from errant particles and component failure debris that may bypass the main system filter. Installation directly above the subplate is recommended to safeguard the entire valve stack. Surface Type elements incorporate a single-layer 304 stainless steel mesh media supported by a perforated sheet tube, offering a 40-micron nominal and 63-micron absolute rating. This type is discreet during normal operations but provides critical protection in case of sudden component failure. Depth Type elements are available in nominal ranges of 3, 10, and 25 microns, featuring pleated microglass media with clear zinc-coated components. These elements have specific Beta ratios as detailed in performance curves. The FLHAXCN model fits into cavity T16A and belongs to Series 3, supporting a capacity of up to 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). The valve's hex size measures at 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf-ft (203-217 Nm). Compatible with phosphate ester fluids, EPDM seals must avoid petroleum-based substances to prevent damage. This product ensures extended filter life dependent on initial system cleanliness and dirt ingress during operation, making it an essential component for maintaining hydraulic system integrity.
The Sun Hydraulics FLHAXCN (Material Number: FLHAXCN) is a robust filter element designed for hydraulic systems, available in both Surface Type Last Chance and Depth Style configurations. It features a flow path from Port 2 to Port 1, which should not be reversed even with a reverse free flow check valve installed. These elements are engineered with high collapse pressure to be used inline with the system, ensuring protection from errant particles and component failure debris that may bypass the main system filter. Installation directly above the subplate is recommended to safeguard the entire valve stack. Surface Type elements incorporate a single-layer 304 stainless steel mesh media supported by a perforated sheet tube, offering a 40-micron nominal and 63-micron absolute rating. This type is discreet during normal operations but provides critical protection in case of sudden component failure. Depth Type elements are available in nominal ranges of 3, 10, and 25 microns, featuring pleated microglass media with clear zinc-coated components. These elements have specific Beta ratios as detailed in performance curves. The FLHAXCN model fits into cavity T16A and belongs to Series 3, supporting a capacity of up to 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). The valve's hex size measures at 1-1/4 inches (31.8 mm), requiring an installation torque between 150-160 lbf-ft (203-217 Nm). Compatible with phosphate ester fluids, EPDM seals must avoid petroleum-based substances to prevent damage. This product ensures extended filter life dependent on initial system cleanliness and dirt ingress during operation, making it an essential component for maintaining hydraulic system integrity.
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.
- Depth type elements are available in 3 µm, 10 µm, and 25 µm nominal ranges.
- 3, 10, and 25 micron elements have a Beta ratio as shown in the Performance Curves tab.
- Depth Type elements feature a pleated microglass media with clear zinc coated components.

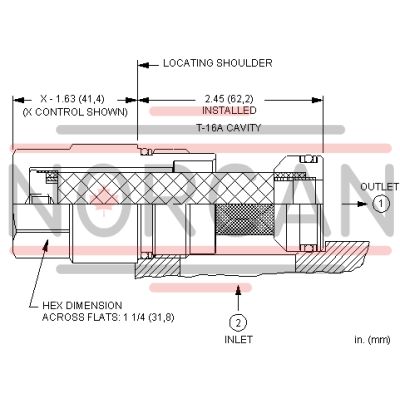

| Cavity | T-16A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
