SUN HYDRAULICS
FLHAXCV
$235.79 USD
- SUN HYDRAULICS
- Material:FLHAXCV
- Model:FLHA-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FLHAXCV (Material Number: FLHAXCV) is a robust filter element designed for hydraulic systems. This component is available in Surface Type Last Chance and Depth Style elements, providing essential protection against contaminants that might bypass the main system filter or arise from component failures. The flow path for this filter is strictly from Port 2 to Port 1, and it should not be reversed, even when a reverse free flow check valve is present. The Surface Type element features a 304 stainless steel mesh with all internal components also made from 304 stainless steel, offering a nominal rating of 40 microns and an absolute rating of 63 microns. These elements are engineered to withstand high collapse pressures and are intended for inline use within the system. Installation directly above the subplate ensures comprehensive protection of the entire valve stack from particulate contamination. The filter's differential crush pressure is rated at 3000 psid (210 bar), demonstrating its capability to handle demanding operational conditions. Cartridges equipped with EPDM seals are specifically designed for use with phosphate ester fluids; exposure to petroleum-based substances can damage these seals. Depth Type elements come in nominal ranges of 3, 10, and 25 microns, featuring pleated microglass media with clear zinc-coated components. These filters offer varying Beta ratios as detailed in performance curves, ensuring efficient filtration tailored to specific needs. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 40 gpm (160 L/min), this filter is suitable for high-demand applications. It fits into cavity T-16A and requires an installation torque between 150 -160 lbf ft (203 -217 Nm).
The Sun Hydraulics FLHAXCV (Material Number: FLHAXCV) is a robust filter element designed for hydraulic systems. This component is available in Surface Type Last Chance and Depth Style elements, providing essential protection against contaminants that might bypass the main system filter or arise from component failures. The flow path for this filter is strictly from Port 2 to Port 1, and it should not be reversed, even when a reverse free flow check valve is present. The Surface Type element features a 304 stainless steel mesh with all internal components also made from 304 stainless steel, offering a nominal rating of 40 microns and an absolute rating of 63 microns. These elements are engineered to withstand high collapse pressures and are intended for inline use within the system. Installation directly above the subplate ensures comprehensive protection of the entire valve stack from particulate contamination. The filter's differential crush pressure is rated at 3000 psid (210 bar), demonstrating its capability to handle demanding operational conditions. Cartridges equipped with EPDM seals are specifically designed for use with phosphate ester fluids; exposure to petroleum-based substances can damage these seals. Depth Type elements come in nominal ranges of 3, 10, and 25 microns, featuring pleated microglass media with clear zinc-coated components. These filters offer varying Beta ratios as detailed in performance curves, ensuring efficient filtration tailored to specific needs. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 40 gpm (160 L/min), this filter is suitable for high-demand applications. It fits into cavity T-16A and requires an installation torque between 150 -160 lbf ft (203 -217 Nm).
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.
- Depth type elements are available in 3 µm, 10 µm, and 25 µm nominal ranges.
- 3, 10, and 25 micron elements have a Beta ratio as shown in the Performance Curves tab.
- Depth Type elements feature a pleated microglass media with clear zinc coated components.

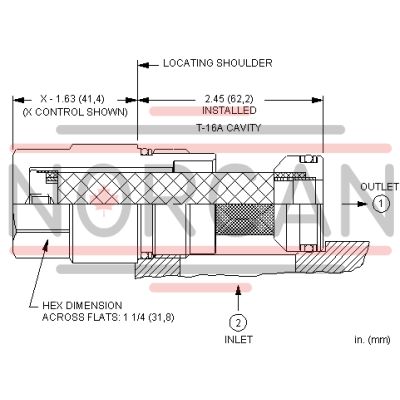

| Cavity | T-16A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
