SUN HYDRAULICS
FLHAXDE
$368.92 USD
- SUN HYDRAULICS
- Material:FLHAXDE
- Model:FLHA-XDE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FLHAXDE (FLHAXDE) is a high-performance filter element designed to protect hydraulic systems by capturing errant particles that may bypass the main system filter or result from component failures. This Surface Type Last Chance element features a 304 stainless steel mesh media supported by a perforated sheet tube, ensuring durability and reliability in demanding applications. With a nominal rating of 40 microns and an absolute rating of 63 microns, the filter effectively traps contaminants, safeguarding the entire valve stack when installed directly above the subplate. It offers a differential crush pressure of 3000 psid (210 bar), making it suitable for high-pressure environments with a maximum operating pressure of 5000 psi (350 bar). The FLHAXDE is designed for use in systems with phosphate ester fluids, utilizing EPDM seals that are resistant to petroleum-based fluids, greases, and lubricants. The flow path is strictly from Port 2 to Port 1, ensuring optimal performance and preventing reverse flow issues even if a reverse free flow check valve is installed. The cartridge has a capacity of 40 gpm (160 L/min) and fits into a T16A cavity with installation torque specifications of 150-160 lbf ft (203-217 Nm). For maintenance, Viton seal kits are available under part number 990016006. This filter element provides an essential layer of protection in hydraulic systems, ensuring longevity and reliability by minimizing the risk of sudden component failure due to particle contamination.
The Sun Hydraulics FLHAXDE (FLHAXDE) is a high-performance filter element designed to protect hydraulic systems by capturing errant particles that may bypass the main system filter or result from component failures. This Surface Type Last Chance element features a 304 stainless steel mesh media supported by a perforated sheet tube, ensuring durability and reliability in demanding applications. With a nominal rating of 40 microns and an absolute rating of 63 microns, the filter effectively traps contaminants, safeguarding the entire valve stack when installed directly above the subplate. It offers a differential crush pressure of 3000 psid (210 bar), making it suitable for high-pressure environments with a maximum operating pressure of 5000 psi (350 bar). The FLHAXDE is designed for use in systems with phosphate ester fluids, utilizing EPDM seals that are resistant to petroleum-based fluids, greases, and lubricants. The flow path is strictly from Port 2 to Port 1, ensuring optimal performance and preventing reverse flow issues even if a reverse free flow check valve is installed. The cartridge has a capacity of 40 gpm (160 L/min) and fits into a T16A cavity with installation torque specifications of 150-160 lbf ft (203-217 Nm). For maintenance, Viton seal kits are available under part number 990016006. This filter element provides an essential layer of protection in hydraulic systems, ensuring longevity and reliability by minimizing the risk of sudden component failure due to particle contamination.
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.
- Depth type elements are available in 3 µm, 10 µm, and 25 µm nominal ranges.
- 3, 10, and 25 micron elements have a Beta ratio as shown in the Performance Curves tab.
- Depth Type elements feature a pleated microglass media with clear zinc coated components.

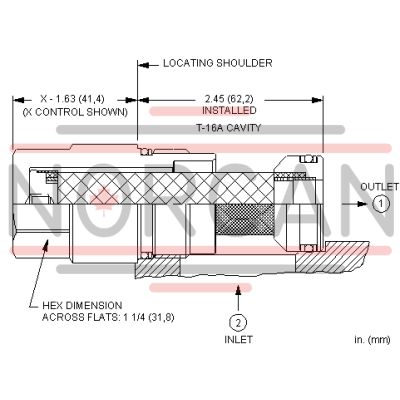

| Cavity | T-16A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
