SUN HYDRAULICS
FLHAXDV
$295.95 USD
- SUN HYDRAULICS
- Material:FLHAXDV
- Model:FLHA-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

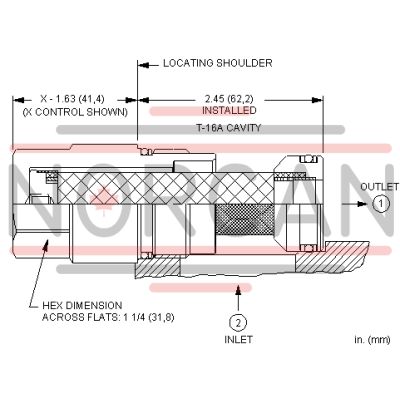

The Sun Hydraulics FLHAXDV (Material Number: FLHAXDV) is a high-performance filter element designed for hydraulic systems. This product features a Surface Type Last Chance element with a 304 stainless steel mesh media, ensuring robust protection against errant particles that may bypass the main system filter or result from component failures. The filter's flow path is strictly from Port 2 to Port 1, and it should not be used in reverse, even with a reverse free flow check valve installed. It boasts a high collapse pressure and is intended for inline use within the system, providing reliable filtration to protect the entire valve stack when installed directly above the subplate. The differential crush pressure of this filter element is rated at 3000 psid (210 bar), and it has a nominal capacity of 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). The Surface Type elements have a nominal rating of 40 microns and an absolute rating of 63 microns, making them suitable for capturing fine particles during normal operation. Additionally, cartridges equipped with EPDM seals are specifically designed for use with phosphate ester fluids and should not be exposed to petroleum-based fluids to prevent seal damage. The valve hex size measures 1-1/4 inches (31.8 mm), with an installation torque requirement between 150 - 160 lbf ft (203 - 217 Nm). This filter element is ideal for maintaining system cleanliness and extending the life of hydraulic components by preventing contamination-related failures.
The Sun Hydraulics FLHAXDV (Material Number: FLHAXDV) is a high-performance filter element designed for hydraulic systems. This product features a Surface Type Last Chance element with a 304 stainless steel mesh media, ensuring robust protection against errant particles that may bypass the main system filter or result from component failures. The filter's flow path is strictly from Port 2 to Port 1, and it should not be used in reverse, even with a reverse free flow check valve installed. It boasts a high collapse pressure and is intended for inline use within the system, providing reliable filtration to protect the entire valve stack when installed directly above the subplate. The differential crush pressure of this filter element is rated at 3000 psid (210 bar), and it has a nominal capacity of 40 gpm (160 L/min) with a maximum operating pressure of 5000 psi (350 bar). The Surface Type elements have a nominal rating of 40 microns and an absolute rating of 63 microns, making them suitable for capturing fine particles during normal operation. Additionally, cartridges equipped with EPDM seals are specifically designed for use with phosphate ester fluids and should not be exposed to petroleum-based fluids to prevent seal damage. The valve hex size measures 1-1/4 inches (31.8 mm), with an installation torque requirement between 150 - 160 lbf ft (203 - 217 Nm). This filter element is ideal for maintaining system cleanliness and extending the life of hydraulic components by preventing contamination-related failures.
Sun filter elements are available as Surface Type (Last Chance) and Depth Style elements. The flow path is Port 2 to Port 1 and should not be used in reverse, even with a reverse free flow check valve installed. The elements have a high collapse pressure and are intended to be used in line with the system. Filter life will depend on initial system cleanliness and the amount of dirt ingression to the system when operating.
- Installation directly above the subplate will protect the entire valve stack from particles.
- Differential crush pressure is 3000 psid (210 bar).
- The flow path is Port 2 to Port 1 only.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Surface type element features a 304 stainless steel mesh media. All internal components are 304 stainless steel.
- Surface Type elements have a 40 micron nominal rating (63 micron absolute).
- Surface Type elements are designed to capture errant particles that may not be trapped in the main system filter or particles resulting from a component failure.
- With a correctly assembled system, Surface Type elements will be unnoticed during regular operation, but will provide protection from sudden component failure.
- Surface Type (Last Chance) elements have a single layer stainless steel mesh supported by perforated sheet tube.
- Depth type elements are available in 3 µm, 10 µm, and 25 µm nominal ranges.
- 3, 10, and 25 micron elements have a Beta ratio as shown in the Performance Curves tab.
- Depth Type elements feature a pleated microglass media with clear zinc coated components.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
