SUN HYDRAULICS
FRCACAN
$71.48 USD
- SUN HYDRAULICS
- Material:FRCACAN
- Model:FRCA-CAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRCACAN (FRCACAN) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow effectively. It takes an input flow at port 1 and directs it to satisfy a priority flow at port 3. If the input surpasses the priority requirement, the excess is bypassed through port 2, which can then be utilized in a secondary circuit. The device requires a customer-specified flow rating and offers factory-set ratings within 10% of the requested setting. Both priority and bypass flows can be used up to the system's maximum operating pressure of 5000 psi (350 bar). The valve ensures that priority flow remains constant despite variations in input flow, while bypass flow becomes available only after fulfilling priority requirements. The design includes a sharp-edged orifice that minimizes variations due to viscosity changes and offers an adjustable control option allowing up to 25% variation from the nominal preset flow via a simple adjustment screw mechanism. The Sun floating style construction minimizes internal binding risks caused by excessive installation torque or machining variations in cavities or cartridges. This model fits into cavity T-11A and belongs to series 1 with a capacity of 6 gpm (23 L/min) and can handle a maximum input flow of 15 gpm (60 L/min). Its compact design features a valve hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). Additional specifications include an adjustment screw internal hex size of 5/32 inches (4 mm), locknut hex size of 9/16 inches (15 mm), and locknut torque between 80-90 lbf in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for durability.
The Sun Hydraulics FRCACAN (FRCACAN) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage hydraulic flow effectively. It takes an input flow at port 1 and directs it to satisfy a priority flow at port 3. If the input surpasses the priority requirement, the excess is bypassed through port 2, which can then be utilized in a secondary circuit. The device requires a customer-specified flow rating and offers factory-set ratings within 10% of the requested setting. Both priority and bypass flows can be used up to the system's maximum operating pressure of 5000 psi (350 bar). The valve ensures that priority flow remains constant despite variations in input flow, while bypass flow becomes available only after fulfilling priority requirements. The design includes a sharp-edged orifice that minimizes variations due to viscosity changes and offers an adjustable control option allowing up to 25% variation from the nominal preset flow via a simple adjustment screw mechanism. The Sun floating style construction minimizes internal binding risks caused by excessive installation torque or machining variations in cavities or cartridges. This model fits into cavity T-11A and belongs to series 1 with a capacity of 6 gpm (23 L/min) and can handle a maximum input flow of 15 gpm (60 L/min). Its compact design features a valve hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). Additional specifications include an adjustment screw internal hex size of 5/32 inches (4 mm), locknut hex size of 9/16 inches (15 mm), and locknut torque between 80-90 lbf in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and uses Viton seal kits for durability.

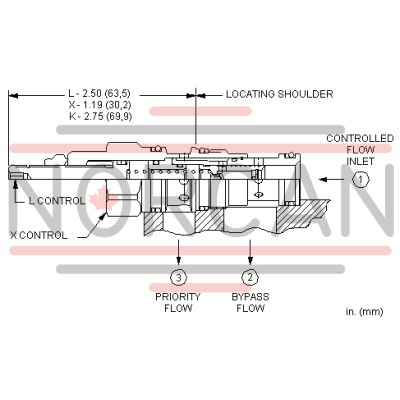

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
