- Material:FRCAXAV
- Model:FRCA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

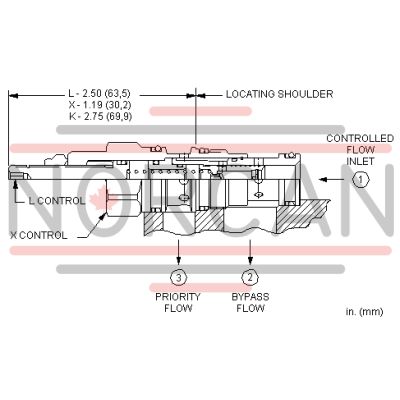

The Sun Hydraulics FRCAXAV (FRCAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage and direct hydraulic flow efficiently. It operates by taking an input flow at port 1 and prioritizing the flow to port 3. If the input exceeds the priority requirement, the surplus is redirected through port 2 for potential use in secondary circuits. Notably, both priority and bypass flows can function up to the system's maximum operating pressure of 5000 psi (350 bar). The valve maintains a relatively constant priority flow despite variations in input. However, bypass flow becomes available only after fulfilling the priority needs. The design allows pressure at port 2 to exceed that at port 3. Equipped with a sharp-edged orifice, it minimizes variations due to viscosity changes. An optional adjustable control offers up to a 25% variation from factory settings using an internal adjustment screw with three turns for tuning. The Sun floating style construction reduces risks of internal binding due to excessive installation torque or machining variances in cavity/cartridge interfaces. The FRCAXAV fits into a T-11A cavity and belongs to Series 1 with a capacity of 6 gpm (23 L/min) and accommodates maximum input flows of 15 gpm (60 L/min). It requires specific installation torques: valve hex size is .78 inches (22.2 mm), with installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut hex measures .916 inches (15 mm) with torque specifications of 80-90 lbf in (9-10 Nm). This model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kits for optimal performance.
The Sun Hydraulics FRCAXAV (FRCAXAV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage and direct hydraulic flow efficiently. It operates by taking an input flow at port 1 and prioritizing the flow to port 3. If the input exceeds the priority requirement, the surplus is redirected through port 2 for potential use in secondary circuits. Notably, both priority and bypass flows can function up to the system's maximum operating pressure of 5000 psi (350 bar). The valve maintains a relatively constant priority flow despite variations in input. However, bypass flow becomes available only after fulfilling the priority needs. The design allows pressure at port 2 to exceed that at port 3. Equipped with a sharp-edged orifice, it minimizes variations due to viscosity changes. An optional adjustable control offers up to a 25% variation from factory settings using an internal adjustment screw with three turns for tuning. The Sun floating style construction reduces risks of internal binding due to excessive installation torque or machining variances in cavity/cartridge interfaces. The FRCAXAV fits into a T-11A cavity and belongs to Series 1 with a capacity of 6 gpm (23 L/min) and accommodates maximum input flows of 15 gpm (60 L/min). It requires specific installation torques: valve hex size is .78 inches (22.2 mm), with installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of .532 inches (4 mm), while the locknut hex measures .916 inches (15 mm) with torque specifications of 80-90 lbf in (9-10 Nm). This model weighs approximately .30 lb (.15 kg) and utilizes Viton seal kits for optimal performance.
Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
