SUN HYDRAULICS
FRCAXBN
$56.59 USD
- SUN HYDRAULICS
- Material:FRCAXBN
- Model:FRCA-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRCAXBN (FRCAXBN) is a versatile bypass restrictive, fixed orifice, priority flow control valve designed to efficiently manage input flow at port 1. It ensures the priority flow at port 3 is satisfied before directing any excess flow to port 2 for potential use in secondary circuits. The device requires the customer to specify a flow rating, with factory settings accurate within 10% of the requested specification. This model maintains consistent priority flow despite variations in input and allows both priority and bypass flows to operate up to system pressure limits. Notably, pressure at the bypass port can exceed that at the priority port. Its sharp-edged orifice design minimizes viscosity-related flow variations. The FRCAXBN offers an adjustable control option allowing up to a 25% variation from the nominal factory preset using an adjustment screw. This feature provides flexibility in tailoring performance to specific application needs. Constructed with Sun's floating style technology, it reduces risks of internal part binding due to excessive installation torque or machining inconsistencies. Key specifications include a capacity of 6 gpm (23 L/min), maximum operating pressure of 5000 psi (350 bar), and maximum input flow of 15 gpm (60 L/min). Installation requires a valve hex size of 7/8 inch (22.2 mm) and torque between 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), and the locknut requires a torque of 80-90 lbf-in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and is compatible with Viton seal kits for enhanced durability. This product is ideal for hydraulic systems requiring precise control over fluid distribution, ensuring optimal performance across various applications demanding reliable priority flow management.
The Sun Hydraulics FRCAXBN (FRCAXBN) is a versatile bypass restrictive, fixed orifice, priority flow control valve designed to efficiently manage input flow at port 1. It ensures the priority flow at port 3 is satisfied before directing any excess flow to port 2 for potential use in secondary circuits. The device requires the customer to specify a flow rating, with factory settings accurate within 10% of the requested specification. This model maintains consistent priority flow despite variations in input and allows both priority and bypass flows to operate up to system pressure limits. Notably, pressure at the bypass port can exceed that at the priority port. Its sharp-edged orifice design minimizes viscosity-related flow variations. The FRCAXBN offers an adjustable control option allowing up to a 25% variation from the nominal factory preset using an adjustment screw. This feature provides flexibility in tailoring performance to specific application needs. Constructed with Sun's floating style technology, it reduces risks of internal part binding due to excessive installation torque or machining inconsistencies. Key specifications include a capacity of 6 gpm (23 L/min), maximum operating pressure of 5000 psi (350 bar), and maximum input flow of 15 gpm (60 L/min). Installation requires a valve hex size of 7/8 inch (22.2 mm) and torque between 30-35 lbf-ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), and the locknut requires a torque of 80-90 lbf-in (9-10 Nm). The model weighs approximately .30 lb (.15 kg) and is compatible with Viton seal kits for enhanced durability. This product is ideal for hydraulic systems requiring precise control over fluid distribution, ensuring optimal performance across various applications demanding reliable priority flow management.

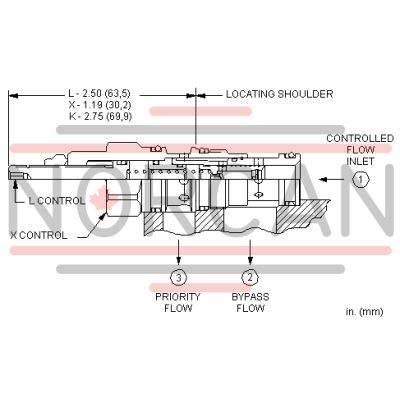

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
