SUN HYDRAULICS
FRDACAN
$96.00 USD
- SUN HYDRAULICS
- Material:FRDACAN
- Model:FRDA-CAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FRDACAN (Material Number: FRDACAN) is a bypass restrictive, fixed orifice, priority flow control valve designed to manage hydraulic flow efficiently. It takes input flow at port 1 and prioritizes the flow to port 3, with any excess being directed to port 2 for secondary circuit use. Users must specify a flow rating, which is factory set within 10% of the requested setting. The device operates effectively with a maximum pressure of 3000 psi at port 3 and can handle both priority and bypass flows up to the system's operating pressure. The priority flow remains constant despite variations in input flow, while the bypass becomes available only after priority requirements are met. Notably, pressure at port 2 can exceed that at port 3. The valve features a sharp-edged orifice design that minimizes flow variations due to viscosity changes and offers an adjustable control option for up to a 25% variation from the factory preset flow. This adjustment is made using three turns of an adjust screw, which increases flow when turned clockwise. The FRDACAN model incorporates Sun's floating style construction to prevent internal binding due to excessive installation torque or machining variations. Key specifications include a T2A cavity, Series 2 classification, and a capacity of 12 gpm (45 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with an input flow capacity of up to 30 gpm (120 L/min). Installation requires specific torque settings for optimal performance: valve hex size is 1-1/8 inches with torque between 45-50 lbf-ft (61-68 Nm), while the locknut requires torque of 80-90 lbf-in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and includes a Viton seal kit for cartridge maintenance.
The Sun Hydraulics FRDACAN (Material Number: FRDACAN) is a bypass restrictive, fixed orifice, priority flow control valve designed to manage hydraulic flow efficiently. It takes input flow at port 1 and prioritizes the flow to port 3, with any excess being directed to port 2 for secondary circuit use. Users must specify a flow rating, which is factory set within 10% of the requested setting. The device operates effectively with a maximum pressure of 3000 psi at port 3 and can handle both priority and bypass flows up to the system's operating pressure. The priority flow remains constant despite variations in input flow, while the bypass becomes available only after priority requirements are met. Notably, pressure at port 2 can exceed that at port 3. The valve features a sharp-edged orifice design that minimizes flow variations due to viscosity changes and offers an adjustable control option for up to a 25% variation from the factory preset flow. This adjustment is made using three turns of an adjust screw, which increases flow when turned clockwise. The FRDACAN model incorporates Sun's floating style construction to prevent internal binding due to excessive installation torque or machining variations. Key specifications include a T2A cavity, Series 2 classification, and a capacity of 12 gpm (45 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with an input flow capacity of up to 30 gpm (120 L/min). Installation requires specific torque settings for optimal performance: valve hex size is 1-1/8 inches with torque between 45-50 lbf-ft (61-68 Nm), while the locknut requires torque of 80-90 lbf-in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and includes a Viton seal kit for cartridge maintenance.

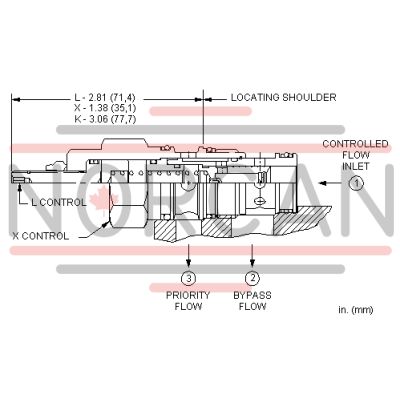

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 30 gpm120 L/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
