SUN HYDRAULICS
FRDBLBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

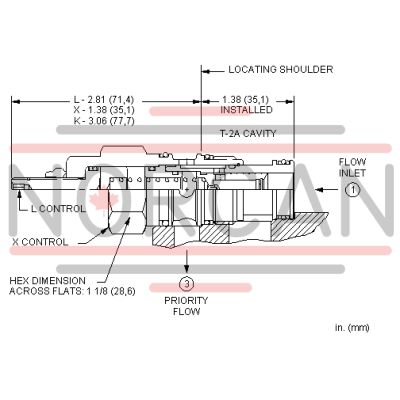

The Sun Hydraulics FRDBLBV (Material Number: FRDBLBV) is a 2-port restrictive flow control valve designed to fit into a 3-port cavity, with no connection to port 2. This valve is ideal for applications requiring precise flow regulation, as it features a sharp-edged orifice design that minimizes flow variations due to viscosity changes. The unit allows customers to specify a factory-set flow rating with an accuracy claim of \u00b110%, but typically set within \u00b15% during production testing. It supports a tuneable adjustment control option providing up to 25% variation from the nominal factory preset flow, which can be adjusted using three turns of the adjust screw. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while the valve itself can handle maximum operating pressures up to 5000 psi (350 bar) and maximum input flows of 30 gpm (120 L/min). Constructed with Sun's floating style design, it minimizes the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The valve features a T-2A cavity and has a capacity of 12 gpm (45 L/min). Additional specifications include a valve hex size of 1-1/8 inches (28.6 mm), an adjustment screw internal hex size of 5/32 inches (4 mm), and a locknut hex size of 9/16 inches (15 mm), with installation torque requirements ranging from 45-50 lbf ft (61-68 Nm) for the valve and locknut torque between 80-90 lbf in (9-10 Nm). The model weighs approximately .40 lb (.20 kg) and uses Viton seal kits for cartridge sealing.
