SUN HYDRAULICS
FREAXBV
$191.41 USD
- SUN HYDRAULICS
- Material:FREAXBV
- Model:FREA-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FREAXBV (FREAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage input flow efficiently. It directs the required priority flow to port 3 and diverts any excess to port 2 for secondary circuit use. Users must specify a flow rating, with factory settings accurate within 10% of the requested value. The valve can handle maximum pressures of up to 3000 psi (210 bar) at port 3, and both priority and bypass flows are usable up to the system's operating pressure. The design includes a tuneable adjustment control option that allows for a 22% variation from the nominal factory preset flow, adjusted through three turns of an internal screw. This feature ensures priority remains constant despite input fluctuations, while bypass flow becomes available only after fulfilling priority requirements. The valve incorporates Sun's floating style construction to prevent internal binding due to excessive installation torque or machining variations in cavity/cartridge setups. It fits into a T-17A cavity and belongs to Series 3 with a capacity of up to 25 gpm (95 L/min) and can manage maximum input flows of 60 gpm (240 L/min). The sharp-edged orifice design minimizes viscosity-related flow variations, enhancing performance stability across different conditions. Additionally, the FREAXBV model features specific installation requirements: a valve hex size of 1-1/4 inches (31.8 mm), an adjustment screw internal hex size of 5/32 inches (4 mm), and a locknut hex size of 9/16 inches (15 mm). Proper installation torque ranges from 150-160 lbf ft (203-217 Nm) for the valve and 80-90 lbf in (9-10 Nm) for the locknut. The model weighs approximately 1.25 lb (0.60 kg) and uses Viton seal kits for effective sealing solutions.
The Sun Hydraulics FREAXBV (FREAXBV) is a bypass-restrictive, fixed-orifice, priority flow control valve designed to manage input flow efficiently. It directs the required priority flow to port 3 and diverts any excess to port 2 for secondary circuit use. Users must specify a flow rating, with factory settings accurate within 10% of the requested value. The valve can handle maximum pressures of up to 3000 psi (210 bar) at port 3, and both priority and bypass flows are usable up to the system's operating pressure. The design includes a tuneable adjustment control option that allows for a 22% variation from the nominal factory preset flow, adjusted through three turns of an internal screw. This feature ensures priority remains constant despite input fluctuations, while bypass flow becomes available only after fulfilling priority requirements. The valve incorporates Sun's floating style construction to prevent internal binding due to excessive installation torque or machining variations in cavity/cartridge setups. It fits into a T-17A cavity and belongs to Series 3 with a capacity of up to 25 gpm (95 L/min) and can manage maximum input flows of 60 gpm (240 L/min). The sharp-edged orifice design minimizes viscosity-related flow variations, enhancing performance stability across different conditions. Additionally, the FREAXBV model features specific installation requirements: a valve hex size of 1-1/4 inches (31.8 mm), an adjustment screw internal hex size of 5/32 inches (4 mm), and a locknut hex size of 9/16 inches (15 mm). Proper installation torque ranges from 150-160 lbf ft (203-217 Nm) for the valve and 80-90 lbf in (9-10 Nm) for the locknut. The model weighs approximately 1.25 lb (0.60 kg) and uses Viton seal kits for effective sealing solutions.

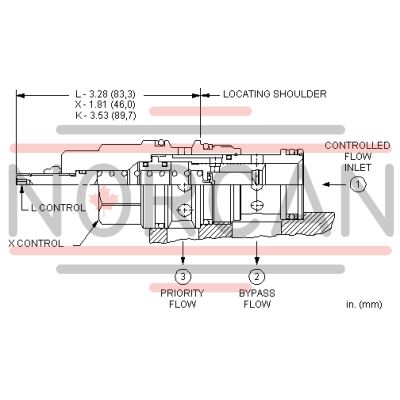

Bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- A tuneable adjustment control option provides up to +/- 22% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.25 lb0,60 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
