SUN HYDRAULICS
FTCAZCV
$710.05 USD
- SUN HYDRAULICS
- Material:FTCAZCV
- Model:FTCA-ZCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTCAZCV (Material Number: FTCAZCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve features ports 2 and 3 that are normally closed and opens a metering orifice between these ports when pilot pressure is applied at port 1, allowing for proportional flow control. The self-compensating design of the metering passage ensures consistent performance, while the dual path design with double port areas enhances flow capacity. A position switch is incorporated to confirm valve closure, and the switch is CE approved. Installation requires a crow's foot wrench due to the position switch, which prevents the use of a deep socket wrench. This cartridge valve comes as a sealed unit from the factory and is not field serviceable\u2014tampering will void its warranty. It can be pressure compensated using an external modulating logic element such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits, enhancing flow control accuracy across varying pressures and flows. Optional protective covers are available separately under kit number: 991043. The FTCAZCV operates within specific parameters: it fits into cavity T-52A with a series number of 2, handles capacities up to 15 gpm (60 L/min), requires minimum pilot pressure of 50 psi (3.5 bar) to shift, and operates at maximum pressures up to 5000 psi (350 bar). The valve has minimal leakage specifications and utilizes Sun's floating style construction to minimize binding risks due to installation variations. For installation torque, it demands between 45-50 lbf ft (61-68 Nm), with Viton seal kits available under part number: 990152006.
The Sun Hydraulics FTCAZCV (Material Number: FTCAZCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve features ports 2 and 3 that are normally closed and opens a metering orifice between these ports when pilot pressure is applied at port 1, allowing for proportional flow control. The self-compensating design of the metering passage ensures consistent performance, while the dual path design with double port areas enhances flow capacity. A position switch is incorporated to confirm valve closure, and the switch is CE approved. Installation requires a crow's foot wrench due to the position switch, which prevents the use of a deep socket wrench. This cartridge valve comes as a sealed unit from the factory and is not field serviceable\u2014tampering will void its warranty. It can be pressure compensated using an external modulating logic element such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits, enhancing flow control accuracy across varying pressures and flows. Optional protective covers are available separately under kit number: 991043. The FTCAZCV operates within specific parameters: it fits into cavity T-52A with a series number of 2, handles capacities up to 15 gpm (60 L/min), requires minimum pilot pressure of 50 psi (3.5 bar) to shift, and operates at maximum pressures up to 5000 psi (350 bar). The valve has minimal leakage specifications and utilizes Sun's floating style construction to minimize binding risks due to installation variations. For installation torque, it demands between 45-50 lbf ft (61-68 Nm), with Viton seal kits available under part number: 990152006.

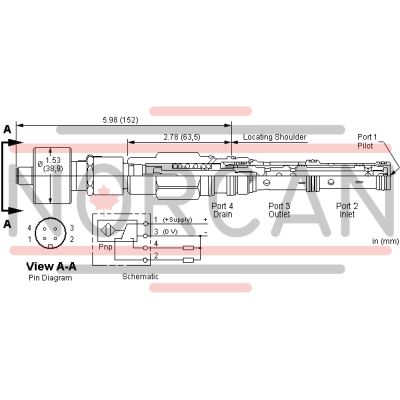

This valve is a 2-way, 2 position, proportional throttle. Ports 2 and 3 are normally closed. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The metering passage is self-compensating.
This valve uses a dual path design, Ports 2 and 3 incorporate a double port area.
This valve incorporates a position switch to provide confirmation that the valve is closed.
- This cartridge is supplied as a sealed, factory set unit and is not field serviceable. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- An optional protective cover, with mounting hardware included, may be ordered separately. See kit number: 991-043.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52AD |
| Series | 2 |
| Capacity | 15 gpm60 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 50 psi3,5 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-152-006 |
