SUN HYDRAULICS
FTDAZCN
$710.15 USD
- SUN HYDRAULICS
- Material:FTDAZCN
- Model:FTDA-ZCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTDAZCN (FTDAZCN) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This cartridge valve features normally closed ports 2 and 3, with pilot pressure applied at port 1 to create a metering orifice between ports 2 and 3, proportional to the pressure at port 1. Its dual-path design incorporates a double port area for enhanced performance, and it includes a position switch for confirming the valve's closed status. The valve is factory-sealed and non-serviceable in the field, ensuring reliable operation without tampering. Installation requires careful torque application using a crow's foot wrench due to the preclusion of deep socket wrenches by the position switch. The FTDAZCN can be pressure compensated using external modulating logic elements like LRCXHN for bypass circuits or LPCXHN for restrictive circuits, allowing it to function as an effective flow control device. Ports are limited to specific pressures, with ports 1 and 4 capped at 500 psi (35 bar), while accurate control necessitates maintaining a constant pressure differential across the valve. The valve's construction minimizes internal binding risks due to excessive torque or machining variations. It fits into cavity T-52A with a series capacity of up to 30 gpm (120 L/min) and operates under a maximum pressure of 5000 psi (350 bar). For enhanced durability and protection, an optional cover kit (991043) is available separately. The FTDAZCN is equipped with Viton seals (seal kit: 990152006) and requires pilot pressures of around 300 psi (20 bar) for full shift at rated flow.
The Sun Hydraulics FTDAZCN (FTDAZCN) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This cartridge valve features normally closed ports 2 and 3, with pilot pressure applied at port 1 to create a metering orifice between ports 2 and 3, proportional to the pressure at port 1. Its dual-path design incorporates a double port area for enhanced performance, and it includes a position switch for confirming the valve's closed status. The valve is factory-sealed and non-serviceable in the field, ensuring reliable operation without tampering. Installation requires careful torque application using a crow's foot wrench due to the preclusion of deep socket wrenches by the position switch. The FTDAZCN can be pressure compensated using external modulating logic elements like LRCXHN for bypass circuits or LPCXHN for restrictive circuits, allowing it to function as an effective flow control device. Ports are limited to specific pressures, with ports 1 and 4 capped at 500 psi (35 bar), while accurate control necessitates maintaining a constant pressure differential across the valve. The valve's construction minimizes internal binding risks due to excessive torque or machining variations. It fits into cavity T-52A with a series capacity of up to 30 gpm (120 L/min) and operates under a maximum pressure of 5000 psi (350 bar). For enhanced durability and protection, an optional cover kit (991043) is available separately. The FTDAZCN is equipped with Viton seals (seal kit: 990152006) and requires pilot pressures of around 300 psi (20 bar) for full shift at rated flow.

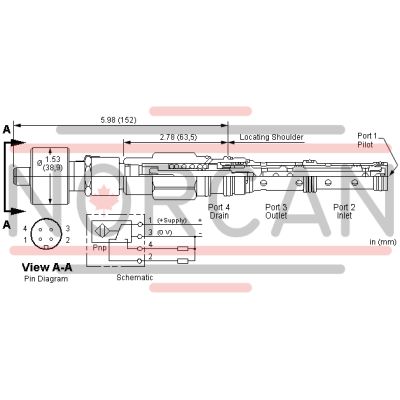

This valve is a 2-way, 2 position, proportional throttle. Ports 2 and 3 are normally closed. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The metering passage is self-compensating.
This valve uses a dual path design, Ports 2 and 3 incorporate a double port area.
This valve incorporates a position switch to provide confirmation that the valve is closed.
- This cartridge is supplied as a sealed, factory set unit and is not field serviceable. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- An optional protective cover, with mounting hardware included, may be ordered separately. See kit number: 991-043.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-52AD |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Pilot Pressure Required for Full Shift at Rated Flow | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .05 in³0,82 cc |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-152-006 |
