SUN HYDRAULICS
FTEAZCV
$859.96 USD
- SUN HYDRAULICS
- Material:FTEAZCV
- Model:FTEA-ZCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTEAZCV (FTEAZCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve operates by using pilot pressure at port 1 to create a metering orifice between ports 2 and 3, with the flow rate being proportional to the pressure at port 1. The valve features a dual path design with double port areas at ports 2 and 3, enhancing its flow capacity. It also includes a position switch for confirmation of valve position, which is CE approved. The FTEAZCV is supplied as a sealed unit and is not field serviceable; any tampering will void the warranty. Installation requires a crow's foot wrench due to the position switch's obstruction of deep socket access. For enhanced performance, this valve can be pressure compensated using an external modulating logic element such as the LRCXHN for bypass circuits or LPCXHN for restrictive circuits. This feature allows for more accurate flow control over varying pressures and flows. An optional protective cover can be ordered separately with kit number 991043. The valve's construction minimizes internal binding due to installation torque or machining variations. Key specifications include a cavity size of T-53A, series 3 capacity of up to 25 gpm (95 L/min), and maximum operating pressure of 5000 psi (350 bar). It requires a minimum pilot pressure of 80 psi (5.5 bar) to shift and full shift at rated flow occurs at 350 psi (24 bar). The valve has a hex size of 1-1/4 inches (31.8 mm) and weighs approximately 4.40 lbs (2 kg). A Viton seal kit is available under part number 990053006.
The Sun Hydraulics FTEAZCV (FTEAZCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve operates by using pilot pressure at port 1 to create a metering orifice between ports 2 and 3, with the flow rate being proportional to the pressure at port 1. The valve features a dual path design with double port areas at ports 2 and 3, enhancing its flow capacity. It also includes a position switch for confirmation of valve position, which is CE approved. The FTEAZCV is supplied as a sealed unit and is not field serviceable; any tampering will void the warranty. Installation requires a crow's foot wrench due to the position switch's obstruction of deep socket access. For enhanced performance, this valve can be pressure compensated using an external modulating logic element such as the LRCXHN for bypass circuits or LPCXHN for restrictive circuits. This feature allows for more accurate flow control over varying pressures and flows. An optional protective cover can be ordered separately with kit number 991043. The valve's construction minimizes internal binding due to installation torque or machining variations. Key specifications include a cavity size of T-53A, series 3 capacity of up to 25 gpm (95 L/min), and maximum operating pressure of 5000 psi (350 bar). It requires a minimum pilot pressure of 80 psi (5.5 bar) to shift and full shift at rated flow occurs at 350 psi (24 bar). The valve has a hex size of 1-1/4 inches (31.8 mm) and weighs approximately 4.40 lbs (2 kg). A Viton seal kit is available under part number 990053006.

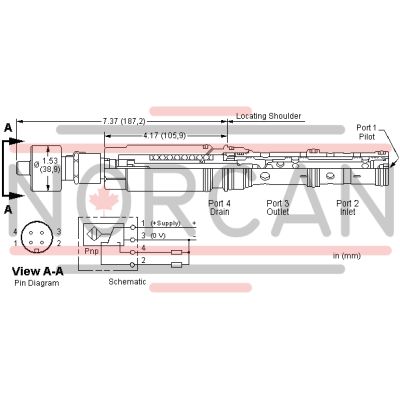

This valve is a 2-way, 2 position, proportional throttle. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The metering passage is self-compensating.
This valve uses a dual path design, Ports 2 and 3 incorporate a double port area.
This valve incorporates a position switch to provide position confirmation.
- This cartridge is supplied as a sealed, factory set unit and is not field serviceable. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- An optional protective cover, with mounting hardware included, may be ordered separately. See kit number: 991-043.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53AD |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 80 psi5,5 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .10 in³1,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 4.40 lb2,00 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
