SUN HYDRAULICS
FTEAZHV
$859.96 USD
- SUN HYDRAULICS
- Material:FTEAZHV
- Model:FTEA-ZHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTEAZHV (Material Number: FTEAZHV) is a 2-way, 2-position proportional throttle valve designed to provide precise flow control in hydraulic systems. It utilizes pilot pressure at port 1 to create a metering orifice between ports 2 and 3, with the flow rate being proportional to the pressure at port 1. This valve features a self-compensating metering passage and employs a dual path design, allowing ports 2 and 3 to incorporate a double port area. A position switch is integrated into the valve for position confirmation, and it is CE approved. This cartridge valve comes as a sealed, factory-set unit that is not field serviceable, ensuring product integrity and warranty compliance. Installation requires special tools due to the position switch's design; specifically, a crow's foot wrench or similar tool is needed as a deep socket wrench cannot be used. The valve can be pressure compensated using an external modulating logic element such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits. This feature enhances its capability as a flow control device by maintaining constant flow across varied pressures. The FTEAZHV model can handle up to 25 gpm (95 L/min) capacity with maximum operating pressures of 5000 psi (350 bar). It requires a minimum pilot pressure of 80 psi (5.5 bar) to shift the valve, with full shift at rated flow needing 350 psi (24 bar). The installation torque ranges from 150-160 lbf ft (203-217 Nm), and it has a model weight of approximately 4.40 lb (2.00 kg). For enhanced protection, an optional cover kit can be ordered separately under kit number: 991043.
The Sun Hydraulics FTEAZHV (Material Number: FTEAZHV) is a 2-way, 2-position proportional throttle valve designed to provide precise flow control in hydraulic systems. It utilizes pilot pressure at port 1 to create a metering orifice between ports 2 and 3, with the flow rate being proportional to the pressure at port 1. This valve features a self-compensating metering passage and employs a dual path design, allowing ports 2 and 3 to incorporate a double port area. A position switch is integrated into the valve for position confirmation, and it is CE approved. This cartridge valve comes as a sealed, factory-set unit that is not field serviceable, ensuring product integrity and warranty compliance. Installation requires special tools due to the position switch's design; specifically, a crow's foot wrench or similar tool is needed as a deep socket wrench cannot be used. The valve can be pressure compensated using an external modulating logic element such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits. This feature enhances its capability as a flow control device by maintaining constant flow across varied pressures. The FTEAZHV model can handle up to 25 gpm (95 L/min) capacity with maximum operating pressures of 5000 psi (350 bar). It requires a minimum pilot pressure of 80 psi (5.5 bar) to shift the valve, with full shift at rated flow needing 350 psi (24 bar). The installation torque ranges from 150-160 lbf ft (203-217 Nm), and it has a model weight of approximately 4.40 lb (2.00 kg). For enhanced protection, an optional cover kit can be ordered separately under kit number: 991043.

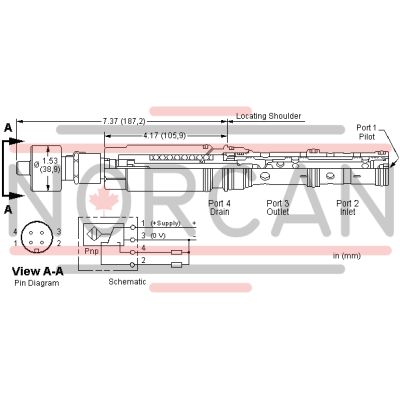

This valve is a 2-way, 2 position, proportional throttle. Pilot pressure at port 1 creates a metering orifice between port 2 and 3 that is proportional to the pressure at 1. The metering passage is self-compensating.
This valve uses a dual path design, Ports 2 and 3 incorporate a double port area.
This valve incorporates a position switch to provide position confirmation.
- This cartridge is supplied as a sealed, factory set unit and is not field serviceable. Any tampering will violate the product warranty.
- Position switch is CE approved.
- When torquing this cartridge into its cavity, a crow's foot wrench or similar will be required since the position switch precludes the use of a deep socket wrench.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- An optional protective cover, with mounting hardware included, may be ordered separately. See kit number: 991-043.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53AD |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 80 psi5,5 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .10 in³1,6 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 4.40 lb2,00 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
