SUN HYDRAULICS
FTECXYV
$470.19 USD
- SUN HYDRAULICS
- Material:FTECXYV
- Model:FTEC-XYV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTECXYV (FTECXYV) is a 4-way, 3-position proportional directional valve designed for precise flow control in hydraulic systems. In the center position, work ports 2 and 4 are drained to port 5, while port 3 remains closed. The valve uses pilot pressure at port 1 to counteract the spring force, creating a variable metering orifice between ports 3 and 4 that adjusts proportionally with the pressure at port 1. Additionally, piloting at port 6 opens a pathway from port 3 to port 2. The valve's design incorporates partial self-compensation for load pressure variations, with pressures at ports 1 and 6 directly opposing each other. This valve operates with nominal pressures not exceeding 500 psi (35 bar) at ports 1 and 6. It can be further optimized using external modulating logic elements such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits to enhance flow control accuracy across varying conditions. The valve's construction employs Sun's floating style design to mitigate risks of internal part binding due to installation torque or machining discrepancies. Key specifications include a cavity type of T-53A, series designation of 3, and a flow capacity of up to 12 gpm (45 L/min). The minimum pilot pressure required for shifting is set at 80 psi (5.5 bar), with full shift achieved at a rated flow requiring a pilot pressure of approximately 350 psi (24 bar). The maximum operating pressure is rated at an impressive 5000 psi (350 bar), with minimal leakage rates under specified conditions. Additional features include low hysteresis values around \u00b12%, and it requires an installation torque between 150-160 lbf ft (203-217 Nm). This model weighs approximately 3.10 lb (1.40 kg) and is compatible with Viton seal kits identified by part number: Viton:990053006.
The Sun Hydraulics FTECXYV (FTECXYV) is a 4-way, 3-position proportional directional valve designed for precise flow control in hydraulic systems. In the center position, work ports 2 and 4 are drained to port 5, while port 3 remains closed. The valve uses pilot pressure at port 1 to counteract the spring force, creating a variable metering orifice between ports 3 and 4 that adjusts proportionally with the pressure at port 1. Additionally, piloting at port 6 opens a pathway from port 3 to port 2. The valve's design incorporates partial self-compensation for load pressure variations, with pressures at ports 1 and 6 directly opposing each other. This valve operates with nominal pressures not exceeding 500 psi (35 bar) at ports 1 and 6. It can be further optimized using external modulating logic elements such as LRCXHN for bypass circuits or LPCXHN for restrictive circuits to enhance flow control accuracy across varying conditions. The valve's construction employs Sun's floating style design to mitigate risks of internal part binding due to installation torque or machining discrepancies. Key specifications include a cavity type of T-53A, series designation of 3, and a flow capacity of up to 12 gpm (45 L/min). The minimum pilot pressure required for shifting is set at 80 psi (5.5 bar), with full shift achieved at a rated flow requiring a pilot pressure of approximately 350 psi (24 bar). The maximum operating pressure is rated at an impressive 5000 psi (350 bar), with minimal leakage rates under specified conditions. Additional features include low hysteresis values around \u00b12%, and it requires an installation torque between 150-160 lbf ft (203-217 Nm). This model weighs approximately 3.10 lb (1.40 kg) and is compatible with Viton seal kits identified by part number: Viton:990053006.

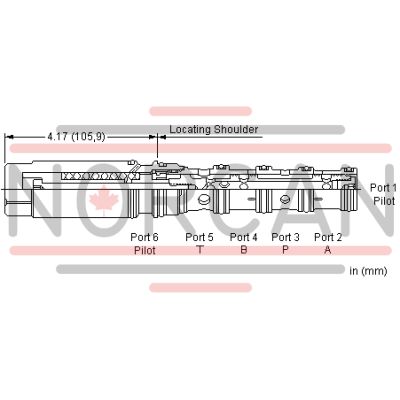

This valve is a 4-way, 3 position, proportional directional valve. Work ports 2 and 4 are drained to 5 in the center position and port 3 is closed. Pilot pressure at port 1 opposes the spring and creates a variable metering orifice between ports 3 and 4 that is proportional to the pressure at 1. Piloting 6 opens 3 to 2. The force balance of the flow forces, spring and pilot pressure results in a degree of partial self compensation as the load pressure changes.
Pressure at ports 1 and 6 directly oppose each other.
- Nominal operating pressures for port 1 and port 6 should not exceed 500 psi (35 bar).
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- Pressure at ports 1 and 6 directly oppose each other.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 12 gpm45 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 80 psi5,5 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2.5 in³/min.@1000 psi41 cc/min.@70 bar |
| Pilot Volume Displacement | .11 in³1,8 cc |
| Hysteresis | ± 2 %± 2 % |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
