SUN HYDRAULICS
FTFALCV
$401.19 USD
- SUN HYDRAULICS
- Material:FTFALCV
- Model:FTFA-LCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTFALCV (Material Number: FTFALCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve operates with ports 2 and 3 normally closed, and pilot pressure applied at port 1 opposes the spring to create a variable metering orifice between ports 2 and 3. This orifice is proportional to the pressure at port 1, allowing for partial self-compensation as load pressure changes. The dual path design incorporates double port areas for enhanced performance. For applications requiring pressure compensation, an external modulating logic element can be used; LRCXHN is recommended for bypass circuits and LPCXHN for restrictive circuits. The valve features a stroke adjustment option (L control) to limit maximum flow, enhancing accuracy in flow control applications. Ports 1 and 4 should maintain pressures under 500 psi (35 bar), as pressure at port 4 directly opposes that at port 1. The valve's construction minimizes internal part binding due to excessive torque or machining variations, ensuring reliable operation. It fits into the T-53A cavity series with a capacity of up to 50 gpm (200 L/min) and requires a minimum pilot pressure of 60 psi (4 bar) to shift the valve, with full shift achievable at a pilot pressure of 300 psi (20 bar). It can operate under maximum pressures of up to 5000 psi (350 bar), with minimal leakage rates of up to 10 in\u00b3/min at specified conditions. Installation requires specific torques, including a valve hex size of 1-1/4 inches (31.8 mm) and adjustment screw internal hex size of 5/32 inches (4 mm).
The Sun Hydraulics FTFALCV (Material Number: FTFALCV) is a 2-way, 2-position proportional throttle valve designed for precise flow control in hydraulic systems. This valve operates with ports 2 and 3 normally closed, and pilot pressure applied at port 1 opposes the spring to create a variable metering orifice between ports 2 and 3. This orifice is proportional to the pressure at port 1, allowing for partial self-compensation as load pressure changes. The dual path design incorporates double port areas for enhanced performance. For applications requiring pressure compensation, an external modulating logic element can be used; LRCXHN is recommended for bypass circuits and LPCXHN for restrictive circuits. The valve features a stroke adjustment option (L control) to limit maximum flow, enhancing accuracy in flow control applications. Ports 1 and 4 should maintain pressures under 500 psi (35 bar), as pressure at port 4 directly opposes that at port 1. The valve's construction minimizes internal part binding due to excessive torque or machining variations, ensuring reliable operation. It fits into the T-53A cavity series with a capacity of up to 50 gpm (200 L/min) and requires a minimum pilot pressure of 60 psi (4 bar) to shift the valve, with full shift achievable at a pilot pressure of 300 psi (20 bar). It can operate under maximum pressures of up to 5000 psi (350 bar), with minimal leakage rates of up to 10 in\u00b3/min at specified conditions. Installation requires specific torques, including a valve hex size of 1-1/4 inches (31.8 mm) and adjustment screw internal hex size of 5/32 inches (4 mm).

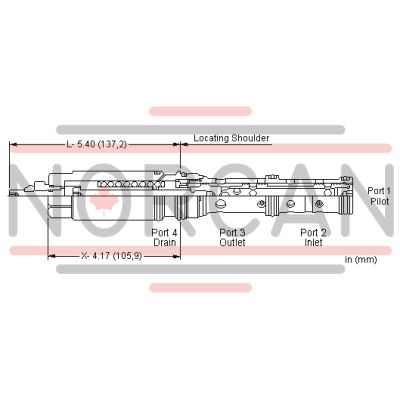

This valve is a 2-way, 2 position, proportional throttle. Ports 2 and 3 are normally closed. Pilot pressure at port 1 opposes the spring and creates a variable metering orifice between port 2 and 3 that is proportional to the pressure at 1. The force balance of the flow forces, spring and pilot pressure results in a degree of partial self-compensation as the load pressure changes.
Pressure at port 4 directly opposes pressure at port 1.
The valve uses a dual path design. Ports 2 and 3 incorporate a double port area.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- The optional L control is a stroke adjustment that limits maximum flow.
- Ports 1 and 4 should be limited to 500 psi (35 bar).
- Pressure at port 4 directly opposes pressure at port 1.
- Accurate pressure compensated control requires that a constant pressure differential be maintained across the valve.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53AD |
| Series | 3 |
| Capacity | 50 gpm200 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 60 psi4 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 300 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@1000 psi160 cc/min.@70 bar |
| Pilot Volume Displacement | .10 in³1,6 cc |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Hysteresis | ± 2 %± 2 % |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
