SUN HYDRAULICS
FTFCXYV
$456.39 USD
- SUN HYDRAULICS
- Material:FTFCXYV
- Model:FTFC-XYV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FTFCXYV (FTFCXYV) is a sophisticated 4-way, 3-position proportional directional valve designed for precise hydraulic control applications. In its center position, work ports 2 and 4 are drained to port 5, while port 3 remains closed. The valve's operation is based on pilot pressure at port 1, which opposes the spring force and creates a variable metering orifice between ports 3 and 4, directly proportional to the pressure at port 1. Piloting at port 6 opens the connection between ports 3 and 2. This valve features partial self-compensation due to the force balance among flow forces, spring tension, and pilot pressure, allowing it to adapt to changes in load pressure. The nominal operating pressures for ports 1 and 6 should not exceed 500 psi (35 bar). For enhanced precision in flow control applications, this valve can be paired with an external modulating logic element like LRCXHN for bypass circuits or LPCXHN for restrictive circuits. The Sun Hydraulics FTFCXYV incorporates a floating style construction that minimizes the risk of internal part binding due to excessive installation torque or machining variations in the cavity or cartridge. With a capacity of up to 35 gpm (140 L/min), this valve requires a minimum pilot pressure of 80 psi (5.5 bar) to shift and reaches full shift at rated flow with a pilot pressure of 350 psi (24 bar). It can operate under maximum pressures of up to 5000 psi (350 bar) with minimal leakage rates. The FTFCXYV also features low hysteresis levels and is equipped with Viton seals for optimal performance under various conditions. Its robust design makes it ideal for applications requiring reliable directional control in hydraulic systems.
The Sun Hydraulics FTFCXYV (FTFCXYV) is a sophisticated 4-way, 3-position proportional directional valve designed for precise hydraulic control applications. In its center position, work ports 2 and 4 are drained to port 5, while port 3 remains closed. The valve's operation is based on pilot pressure at port 1, which opposes the spring force and creates a variable metering orifice between ports 3 and 4, directly proportional to the pressure at port 1. Piloting at port 6 opens the connection between ports 3 and 2. This valve features partial self-compensation due to the force balance among flow forces, spring tension, and pilot pressure, allowing it to adapt to changes in load pressure. The nominal operating pressures for ports 1 and 6 should not exceed 500 psi (35 bar). For enhanced precision in flow control applications, this valve can be paired with an external modulating logic element like LRCXHN for bypass circuits or LPCXHN for restrictive circuits. The Sun Hydraulics FTFCXYV incorporates a floating style construction that minimizes the risk of internal part binding due to excessive installation torque or machining variations in the cavity or cartridge. With a capacity of up to 35 gpm (140 L/min), this valve requires a minimum pilot pressure of 80 psi (5.5 bar) to shift and reaches full shift at rated flow with a pilot pressure of 350 psi (24 bar). It can operate under maximum pressures of up to 5000 psi (350 bar) with minimal leakage rates. The FTFCXYV also features low hysteresis levels and is equipped with Viton seals for optimal performance under various conditions. Its robust design makes it ideal for applications requiring reliable directional control in hydraulic systems.

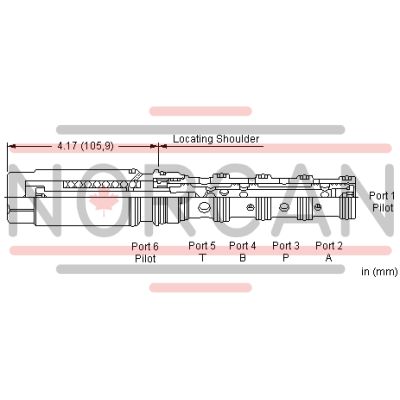

This valve is a 4-way, 3 position, proportional directional valve. Work ports 2 and 4 are drained to 5 in the center position and port 3 is closed. Pilot pressure at port 1 opposes the spring and creates a variable metering orifice between ports 3 and 4 that is proportional to the pressure at 1. Piloting 6 opens 3 to 2. The force balance of the flow forces, spring and pilot pressure results in a degree of partial self compensation as the load pressure changes.
Pressure at ports 1 and 6 directly oppose each other.
- Nominal operating pressures for port 1 and port 6 should not exceed 500 psi (35 bar).
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- Pressure at ports 1 and 6 directly oppose each other.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 35 gpm140 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 80 psi5,5 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2.5 in³/min.@1000 psi41 cc/min.@70 bar |
| Pilot Volume Displacement | .11 in³1,8 cc |
| Hysteresis | ± 2 %± 2 % |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 3.10 lb1,40 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
