SUN HYDRAULICS
FTJ

$140.38 USD

SUN HYDRAULICS
Material:FTJ
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

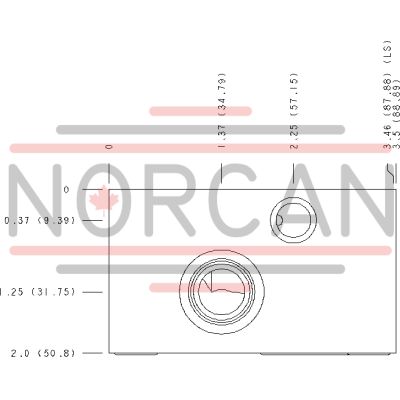

The Sun Hydraulics FTJ (FTJ) is a robust hydraulic subplate designed for efficient fluid management in hydraulic systems. This model features an ISO 03 interface and is crafted from 6061T651 aluminum, known for its excellent corrosion resistance and structural integrity. The subplate includes a P to T manifold T port configuration and is equipped with an SAE 8 port size, making it suitable for various hydraulic applications. A key feature of this subplate is its design to mount on top of a reservoir, with the tank port configured as an NPTF port, allowing for a down pipe connection below the oil level. This design ensures effective sealing with O-rings supplied for both the tank port and mounting holes. Users must consider the maximum system pressure carefully, as aluminum manifolds like this one are not rated for pressures exceeding 3000 psi (210 bar). The Sun Hydraulics FTJ offers reliable performance in controlling fluid flow within specified pressure limits, making it an essential component in maintaining efficient hydraulic systems.

Description

Body Type	SubplateSubplate
Interface	ISO 03ISO 03
Body Features	P to T, manifold T portP to T, manifold T port
Open Cavities	11
Cavity	T-10A
Port Size	SAE 8SAE 8

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

This subplate is designed to mount to the top of a reservoir. Tank is an NPTF port to accommodate a down pipe to drop the connection below the oil level. The tank port and mounting holes are supplied with O rings to seal to the mounting surface.
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
