SUN HYDRAULICS
FTK

$194.59 USD

SUN HYDRAULICS
Material:FTK
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

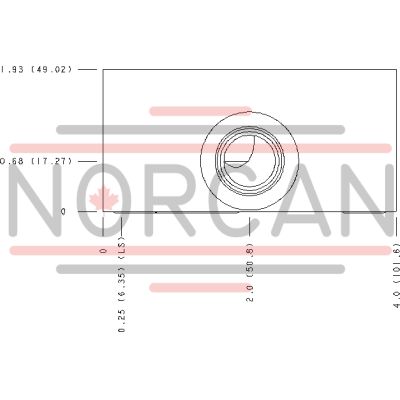

The Sun Hydraulics FTK (Material Number: FTK) is a subplate designed for mounting on the top of a reservoir, featuring an ISO 05 interface and a subplate body type. It includes a P to T manifold T port and one open cavity, specifically the T10A cavity. The subplate is equipped with an SAE 10 port size, ensuring compatibility with various hydraulic systems. One notable feature is its NPTF tank port, which accommodates a down pipe to drop the connection below the oil level, promoting efficient fluid management. The provided O-rings for the tank port and mounting holes ensure a secure seal to the mounting surface. This subplate is constructed from 6061T651 aluminum, known for its strong corrosion resistance and suitability in demanding environments. However, it is important to note that manifolds made from this material are not rated for pressures exceeding 3000 psi (210 bar). This pressure rating should be carefully considered when integrating into hydraulic systems. The FTK model's design facilitates easy integration into existing systems while maintaining robust performance under specified pressure limits.

Description

Body Type	SubplateSubplate
Interface	ISO 05ISO 05
Body Features	P to T, manifold T portP to T, manifold T port
Open Cavities	11
Cavity	T-10A
Port Size	SAE 10SAE 10

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

This subplate is designed to mount to the top of a reservoir. Tank is an NPTF port to accommodate a down pipe to drop the connection below the oil level. The tank port and mounting holes are supplied with O rings to seal to the mounting surface.
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
