SUN HYDRAULICS
FVCAXAV
$98.09 USD
- SUN HYDRAULICS
- Material:FVCAXAV
- Model:FVCA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FVCAXAV (FVCAXAV) is a versatile ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes input flow at port 1 and prioritizes the flow at port 3. Any excess input flow is redirected through port 2 for use in secondary circuits. A vent port (port 4) allows for remote control of the valve. The FVCAXAV requires customers to specify a factory-set flow rating, which is accurate within 10% of the requested setting. It features a pressure control on port 4 to limit pressure at the priority port (port 3), ensuring that if pressure at the bypass port (port 2) exceeds this setting, priority flow is shut off and diverted entirely to the bypass port. This model supports a maximum operating pressure of up to 5000 psi (350 bar), with both priority and bypass flows usable up to system operating pressures. The priority remains relatively constant despite variations in input flow, while bypass flow becomes available only after fulfilling priority requirements unless vented through port 4. Notably, when the vent is open and inlet pressure at port 1 exceeds 150 psi (10.5 bar), all flow diverts to port 2. The FVCAXAV's sharp-edged orifice design minimizes variations due to viscosity changes, and it includes an adjustable control option allowing up to a \u00b125% variation from nominal preset flows via a simple adjustment screw mechanism. Constructed with Sun's floating style design, this valve minimizes risks of internal binding due to installation torque or machining variations in cavity/cartridge setups. With a capacity of handling up to 6 gpm (23 L/min) and accommodating maximum input flows of up to 15 gpm (60 L/min), this model is robust for various hydraulic applications requiring precise flow control management.
The Sun Hydraulics FVCAXAV (FVCAXAV) is a versatile ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes input flow at port 1 and prioritizes the flow at port 3. Any excess input flow is redirected through port 2 for use in secondary circuits. A vent port (port 4) allows for remote control of the valve. The FVCAXAV requires customers to specify a factory-set flow rating, which is accurate within 10% of the requested setting. It features a pressure control on port 4 to limit pressure at the priority port (port 3), ensuring that if pressure at the bypass port (port 2) exceeds this setting, priority flow is shut off and diverted entirely to the bypass port. This model supports a maximum operating pressure of up to 5000 psi (350 bar), with both priority and bypass flows usable up to system operating pressures. The priority remains relatively constant despite variations in input flow, while bypass flow becomes available only after fulfilling priority requirements unless vented through port 4. Notably, when the vent is open and inlet pressure at port 1 exceeds 150 psi (10.5 bar), all flow diverts to port 2. The FVCAXAV's sharp-edged orifice design minimizes variations due to viscosity changes, and it includes an adjustable control option allowing up to a \u00b125% variation from nominal preset flows via a simple adjustment screw mechanism. Constructed with Sun's floating style design, this valve minimizes risks of internal binding due to installation torque or machining variations in cavity/cartridge setups. With a capacity of handling up to 6 gpm (23 L/min) and accommodating maximum input flows of up to 15 gpm (60 L/min), this model is robust for various hydraulic applications requiring precise flow control management.

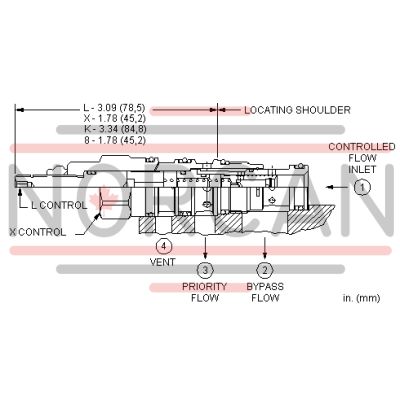

Ventable, bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit. A vent port (port 4) allows these valves to be controlled remotely.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Using a pressure control on port 4 will limit the pressure at the priority port (port 3). If pressure on the bypass port (port 2) exceeds the setting of the pressure control, priority flow will be shut off and all the flow will go out the bypass port.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied, except when the valve is vented. When port 4 (vent) is open, all flow diverts to port 2 if pressure at port 1 (inlet) is 150 psi (10,5 bar) or higher.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-21A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 46 in³/min.0,75 L/min. |
| Maximum Input Flow | 15 gpm60 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-021-006 |
