SUN HYDRAULICS
FVEALAN
$284.34 USD
- SUN HYDRAULICS
- Material:FVEALAN
- Model:FVEA-LAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FVEALAN (FVEALAN) is a versatile ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage and distribute hydraulic flow effectively. This component takes input flow at port 1 to satisfy the priority flow requirements at port 3. Should the input exceed these requirements, excess flow is redirected through port 2 for use in secondary circuits. The valve features a vent port at port 4, enabling remote control capabilities. Customers must specify a desired flow rating, with factory settings accurate within \u00b110%. A pressure control on port 4 can limit the pressure at the priority port (port 3), and if the bypass port (port 2) pressure surpasses this setting, all flow will redirect to the bypass. The FVEALAN maintains consistent priority flow irrespective of input variations, with bypass flow available only after priority needs are met unless vented through port 4. The valve is engineered to handle maximum pressures of up to 3000 psi (210 bar) at the priority port and operates efficiently across system pressures up to its maximum operating pressure of 5000 psi (350 bar). It incorporates a sharp-edged orifice design that minimizes viscosity-related flow variations and features an adjustable control option allowing for a \u00b125% variation from nominal factory settings via an adjustment screw. Constructed with Sun's floating style design, it minimizes internal part binding risks due to installation torque or machining variances. The valve fits T-23A cavities and has a capacity of up to 25 gpm (95 L/min), with a maximum input flow rate of 60 gpm (240 L/min). It requires specific torque values for installation and adjustment and weighs approximately 1.40 lb (0.65 kg).
The Sun Hydraulics FVEALAN (FVEALAN) is a versatile ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage and distribute hydraulic flow effectively. This component takes input flow at port 1 to satisfy the priority flow requirements at port 3. Should the input exceed these requirements, excess flow is redirected through port 2 for use in secondary circuits. The valve features a vent port at port 4, enabling remote control capabilities. Customers must specify a desired flow rating, with factory settings accurate within \u00b110%. A pressure control on port 4 can limit the pressure at the priority port (port 3), and if the bypass port (port 2) pressure surpasses this setting, all flow will redirect to the bypass. The FVEALAN maintains consistent priority flow irrespective of input variations, with bypass flow available only after priority needs are met unless vented through port 4. The valve is engineered to handle maximum pressures of up to 3000 psi (210 bar) at the priority port and operates efficiently across system pressures up to its maximum operating pressure of 5000 psi (350 bar). It incorporates a sharp-edged orifice design that minimizes viscosity-related flow variations and features an adjustable control option allowing for a \u00b125% variation from nominal factory settings via an adjustment screw. Constructed with Sun's floating style design, it minimizes internal part binding risks due to installation torque or machining variances. The valve fits T-23A cavities and has a capacity of up to 25 gpm (95 L/min), with a maximum input flow rate of 60 gpm (240 L/min). It requires specific torque values for installation and adjustment and weighs approximately 1.40 lb (0.65 kg).

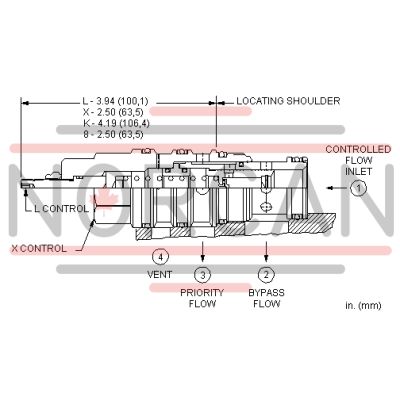

Ventable, bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit. A vent port (port 4) allows these valves to be controlled remotely.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Using a pressure control on port 4 will limit the pressure at the priority port (port 3). If pressure on the bypass port (port 2) exceeds the setting of the pressure control, priority flow will be shut off and all the flow will go out the bypass port.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied, except when the valve is vented. When port 4 (vent) is open, all flow diverts to port 2 if pressure at port 1 (inlet) is 150 psi (10,5 bar) or higher.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 46 in³/min.0,75 L/min. |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-023-006 |
