SUN HYDRAULICS
FVEAXAV
$285.33 USD
- SUN HYDRAULICS
- Material:FVEAXAV
- Model:FVEA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FVEAXAV (FVEAXAV) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage input flow at port 1 and prioritize it to port 3. If the input flow surpasses the priority requirement, the surplus is redirected through port 2 for use in secondary circuits. The valve features a vent port at port 4 for remote control capabilities. Customers can specify a factory-set flow rating with an accuracy of \u00b110%. The valve allows pressure control on port 4 to limit pressure at the priority port (port 3), with all flow directed to the bypass port (port 2) if pressure exceeds settings. The maximum allowable pressure at port 3 is capped at 3000 psi (210 bar), while both priority and bypass flows can operate up to system pressure limits. Priority flow remains stable despite input variations, and bypass flow activates only after satisfying priority needs unless vented via port 4, which diverts all flow to port 2 if inlet pressure reaches or exceeds 150 psi (10.5 bar). The sharp-edged orifice design minimizes viscosity-related flow variations, and an adjustable control option allows up to a \u00b125% variation from nominal settings using a three-turn adjust screw. The valve incorporates Sun's floating-style construction to prevent internal binding from excessive installation torque or machining variations. It fits into a T-23A cavity, supports up to 25 gpm (95 L/min) capacity, and operates under a maximum pressure of 5000 psi (350 bar). Other specifications include a nominal vent flow of 46 in\u00b3/min (0.75 L/min), max input flow of 60 gpm (240 L/min), and installation torque requirements of 150-160 lbf\u00b7ft (203-217 Nm).
The Sun Hydraulics FVEAXAV (FVEAXAV) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage input flow at port 1 and prioritize it to port 3. If the input flow surpasses the priority requirement, the surplus is redirected through port 2 for use in secondary circuits. The valve features a vent port at port 4 for remote control capabilities. Customers can specify a factory-set flow rating with an accuracy of \u00b110%. The valve allows pressure control on port 4 to limit pressure at the priority port (port 3), with all flow directed to the bypass port (port 2) if pressure exceeds settings. The maximum allowable pressure at port 3 is capped at 3000 psi (210 bar), while both priority and bypass flows can operate up to system pressure limits. Priority flow remains stable despite input variations, and bypass flow activates only after satisfying priority needs unless vented via port 4, which diverts all flow to port 2 if inlet pressure reaches or exceeds 150 psi (10.5 bar). The sharp-edged orifice design minimizes viscosity-related flow variations, and an adjustable control option allows up to a \u00b125% variation from nominal settings using a three-turn adjust screw. The valve incorporates Sun's floating-style construction to prevent internal binding from excessive installation torque or machining variations. It fits into a T-23A cavity, supports up to 25 gpm (95 L/min) capacity, and operates under a maximum pressure of 5000 psi (350 bar). Other specifications include a nominal vent flow of 46 in\u00b3/min (0.75 L/min), max input flow of 60 gpm (240 L/min), and installation torque requirements of 150-160 lbf\u00b7ft (203-217 Nm).

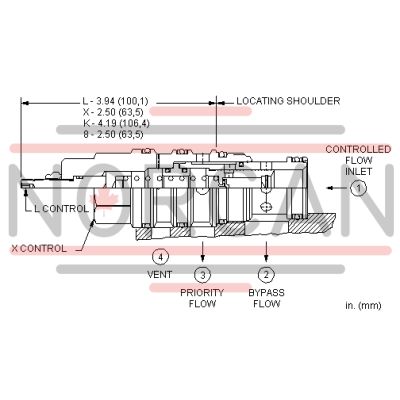

Ventable, bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit. A vent port (port 4) allows these valves to be controlled remotely.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Using a pressure control on port 4 will limit the pressure at the priority port (port 3). If pressure on the bypass port (port 2) exceeds the setting of the pressure control, priority flow will be shut off and all the flow will go out the bypass port.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied, except when the valve is vented. When port 4 (vent) is open, all flow diverts to port 2 if pressure at port 1 (inlet) is 150 psi (10,5 bar) or higher.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 46 in³/min.0,75 L/min. |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-023-006 |
