SUN HYDRAULICS
FVEAXBN
$276.39 USD
- SUN HYDRAULICS
- Material:FVEAXBN
- Model:FVEA-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

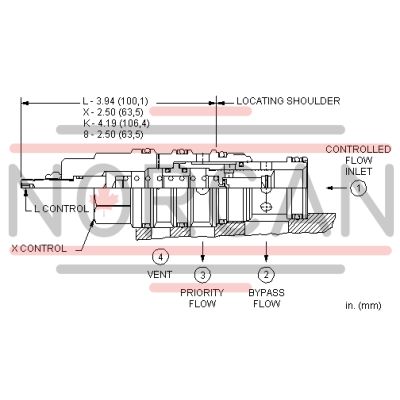

The Sun Hydraulics FVEAXBN (FVEAXBN) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage input flow and prioritize it at port 3 while bypassing any excess to port 2. This configuration allows the bypass flow to be utilized in secondary circuits. A vent port (port 4) offers remote control capabilities, enabling pressure regulation at the priority port (port 3). If pressure on the bypass port exceeds the set limit, priority flow is halted, directing all flow through the bypass. The valve maintains a maximum pressure of 3000 psi at port 3 and operates effectively up to a system pressure of 5000 psi. It features Sun's sharp-edged orifice design to minimize flow variations due to viscosity changes and includes an adjustable control option for tuning flow by up to \u00b125% from its nominal setting. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. The valve fits into a T-23A cavity with a series capacity of up to 25 gpm and can handle input flows up to 60 gpm. It requires an installation torque of 150-160 lbf ft and has an internal hex size adjustment screw for fine-tuning operations. The FVEAXBN model weighs approximately 1.40 lb and comes with Viton seal compatibility for enhanced durability in various applications.
The Sun Hydraulics FVEAXBN (FVEAXBN) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage input flow and prioritize it at port 3 while bypassing any excess to port 2. This configuration allows the bypass flow to be utilized in secondary circuits. A vent port (port 4) offers remote control capabilities, enabling pressure regulation at the priority port (port 3). If pressure on the bypass port exceeds the set limit, priority flow is halted, directing all flow through the bypass. The valve maintains a maximum pressure of 3000 psi at port 3 and operates effectively up to a system pressure of 5000 psi. It features Sun's sharp-edged orifice design to minimize flow variations due to viscosity changes and includes an adjustable control option for tuning flow by up to \u00b125% from its nominal setting. The Sun floating style construction minimizes internal binding risks due to installation torque or machining variations. The valve fits into a T-23A cavity with a series capacity of up to 25 gpm and can handle input flows up to 60 gpm. It requires an installation torque of 150-160 lbf ft and has an internal hex size adjustment screw for fine-tuning operations. The FVEAXBN model weighs approximately 1.40 lb and comes with Viton seal compatibility for enhanced durability in various applications.
Ventable, bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit. A vent port (port 4) allows these valves to be controlled remotely.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Using a pressure control on port 4 will limit the pressure at the priority port (port 3). If pressure on the bypass port (port 2) exceeds the setting of the pressure control, priority flow will be shut off and all the flow will go out the bypass port.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied, except when the valve is vented. When port 4 (vent) is open, all flow diverts to port 2 if pressure at port 1 (inlet) is 150 psi (10,5 bar) or higher.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 46 in³/min.0,75 L/min. |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-023-006 |
