SUN HYDRAULICS
FVEAXBV
$285.33 USD
- SUN HYDRAULICS
- Material:FVEAXBV
- Model:FVEA-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FVEAXBV (FVEAXBV) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes input flow at port 1 and directs it to satisfy the priority flow requirement at port 3. Any excess flow is bypassed through port 2, which can be utilized in secondary circuits. The valve features a vent port (port 4) that allows for remote control. Users must specify a desired flow rating, with factory settings accurate within 10% of the requested value. By using a pressure control on port 4, users can limit the pressure at the priority port (port 3). If pressure at the bypass port (port 2) exceeds the set limit, priority flow will cease, redirecting all flow to the bypass. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while both priority and bypass flows are usable up to system operating pressures. The design ensures that priority remains relatively constant despite variations in input flow. Bypass flow only becomes available once priority requirements are met unless the valve is vented; opening port 4 will divert all flow to port 2 if inlet pressure at port 1 reaches or exceeds 150 psi (10.5 bar). The sharp-edged orifice design minimizes variations due to viscosity changes. This model incorporates Sun's floating style construction, reducing risks of internal binding due to excessive installation torque or machining variations. It features a cavity size of T-23A and series number 3 with a capacity of up to 25 gpm (95 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), and it accommodates an input flow of up to 60 gpm (240 L/min). For adjustments, an internal hex size adjustment screw allows for fine-tuning with three turns providing up to a \u00b125% variation from nominal factory settings.
The Sun Hydraulics FVEAXBV (FVEAXBV) is a ventable, bypass-restrictive, fixed-orifice priority flow control valve designed to manage hydraulic flow efficiently. This valve takes input flow at port 1 and directs it to satisfy the priority flow requirement at port 3. Any excess flow is bypassed through port 2, which can be utilized in secondary circuits. The valve features a vent port (port 4) that allows for remote control. Users must specify a desired flow rating, with factory settings accurate within 10% of the requested value. By using a pressure control on port 4, users can limit the pressure at the priority port (port 3). If pressure at the bypass port (port 2) exceeds the set limit, priority flow will cease, redirecting all flow to the bypass. The maximum pressure at port 3 should not exceed 3000 psi (210 bar), while both priority and bypass flows are usable up to system operating pressures. The design ensures that priority remains relatively constant despite variations in input flow. Bypass flow only becomes available once priority requirements are met unless the valve is vented; opening port 4 will divert all flow to port 2 if inlet pressure at port 1 reaches or exceeds 150 psi (10.5 bar). The sharp-edged orifice design minimizes variations due to viscosity changes. This model incorporates Sun's floating style construction, reducing risks of internal binding due to excessive installation torque or machining variations. It features a cavity size of T-23A and series number 3 with a capacity of up to 25 gpm (95 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), and it accommodates an input flow of up to 60 gpm (240 L/min). For adjustments, an internal hex size adjustment screw allows for fine-tuning with three turns providing up to a \u00b125% variation from nominal factory settings.

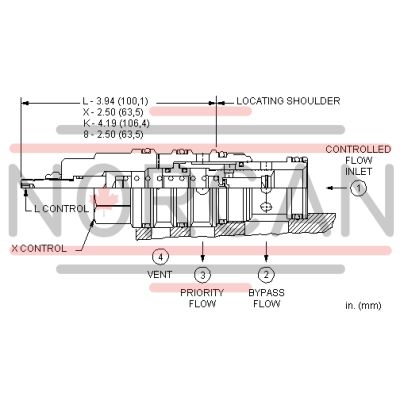

Ventable, bypass/restrictive, fixed-orifice, priority flow controls take an input flow at port 1 and use it to satisfy the priority flow at port 3. If the input flow exceeds the priority flow requirement, the excess is bypassed out port 2. The bypass flow may be used in a secondary circuit. A vent port (port 4) allows these valves to be controlled remotely.
- Customer must specify a flow rating. Factory set flow ratings are within +/- 10% of the requested setting.
- Using a pressure control on port 4 will limit the pressure at the priority port (port 3). If pressure on the bypass port (port 2) exceeds the setting of the pressure control, priority flow will be shut off and all the flow will go out the bypass port.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
- Both priority and bypass flow are usable up to the system operating pressure.
- Priority remains relatively constant regardless of variation in input flow.
- Bypass flow is not available until priority flow requirements are satisfied, except when the valve is vented. When port 4 (vent) is open, all flow diverts to port 2 if pressure at port 1 (inlet) is 150 psi (10,5 bar) or higher.
- Pressure at the bypass port (port 2) may exceed pressure at the priority port (port 3).
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- A tuneable adjustment control option provides up to +/- 25% variation from the nominal factory pre-set flow. Adjustment is done with +/- 3 turns of the adjust screw. Screw in (CW) to increase flow.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-23A |
| Series | 3 |
| Capacity | 25 gpm95 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Nominal Vent Flow | 46 in³/min.0,75 L/min. |
| Maximum Input Flow | 60 gpm240 L/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.40 lb0,65 kg |
| Seal kit - Cartridge | Viton: 990-023-006 |
