SUN HYDRAULICS
FXAGXDN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

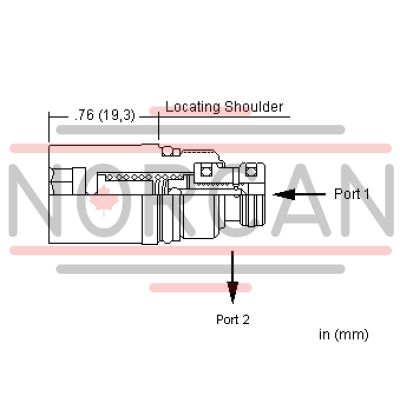

The Sun Hydraulics FXAGXDN (Material Number: FXAGXDN) is a fixed orifice, pressure-compensated flow control valve designed to provide precise flow regulation for meter-in or meter-out applications, especially where there are significant pressure fluctuations. This model is available in various flow rates, with a sharp-edged orifice design that minimizes flow variations due to viscosity changes. It features a flush mount design, allowing it to be mounted flush with the surface of the manifold, contributing to a compact installation footprint. The valve is capable of handling pressures up to 5000 psi (350 bar) at ports 1 and 2. The FXAGXDN model incorporates Sun's floating style construction, which reduces the likelihood of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The flow rate options include A Flow Rate at 2.0 in\u00b3/min (32 cc/min), B Flow Rate at 2.5 in\u00b3/min (40 cc/min), D and F Flow Rates at 3.0 in\u00b3/min (48 cc/min), H and J Flow Rates at 4.0 in\u00b3/min (64 cc/min), and L Flow Rate at 4.5 in\u00b3/min (72 cc/min). This valve fits into the T8A cavity and belongs to Series P with a capacity of .5 gpm (2 L/min). It has an internal hex size of 5/16 inch (8 mm) and should be installed with a torque of 25-30 lbf ft (35-40 Nm). The compensating pressure is approximately 100 psi (7 bar), ensuring adequate capacity without compromising circuit operation efficiency. A Viton seal kit, part number 990008006, is available for this cartridge model.
