FXAGXJV

$60.46 USD

SUN HYDRAULICS
Material:FXAGXJV
Model:FXAG-XJV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FXAGXJV (FXAGXJV) is a fixed orifice, pressure-compensated flow control valve designed to provide precise flow regulation in meter-in or meter-out applications, even under wide pressure fluctuations. This model features a sharp-edged orifice design that minimizes flow variations due to changes in fluid viscosity, ensuring consistent performance. The valve is flush mountable, allowing for a compact installation footprint on manifolds. It can handle a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2, making it suitable for high-pressure applications. The FXAGXJV offers various flow rates: 2.0 in\u00b3/min (32 cc/min), 2.5 in\u00b3/min (40 cc/min), 3.0 in\u00b3/min (48 cc/min), 4.0 in\u00b3/min (64 cc/min), and 4.5 in\u00b3/min (72 cc/min). It incorporates Sun's floating style construction to reduce the risk of internal parts binding due to excessive installation torque or machining variations within the cavity or cartridge. With a capacity of .5 gpm (2 L/min) and designed for the T8A cavity series P, this valve is ideal for applications requiring tight flow control tolerances, with accuracy claimed at \u00b110% and set to \u00b15% during production testing. The FXAGXJV is equipped with an internal hex size of 5/16 inches (8 mm) and should be installed with a torque of 25-30 lbf ft (35-40 Nm). The Viton seal kit part number for this cartridge is 990008006. This valve is not recommended for addressing heat issues unless correctly sized relative to existing systems, as priority flow controls are generally not efficient devices and can generate significant heat if not properly configured within hydraulic circuits.

Description

Fixed-orifice, pressure-compensated flow controls provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. A variety of flow rates are available.

The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Flush mount valves provide a small footprint. They can easily be mounted flush with the surface of the manifold.
Will accept 5000 psi (350 bar) at ports 1 and 2.
Flow Tolerances A Flow Rate +/- 2.0 in³/min. (+/- 32 cc/min.) B Flow Rate +/- 2.5 in³/min. (+/- 40 cc/min.) D and F Flow Rates +/- 3.0 in³/min. (+/- 48 cc/min.) H and J Flow Rates +/- 4.0 in³/min. (+/- 64 cc/min.) L Flow Rate +/- 4.5 in³/min. (+/- 72 cc/min.)
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

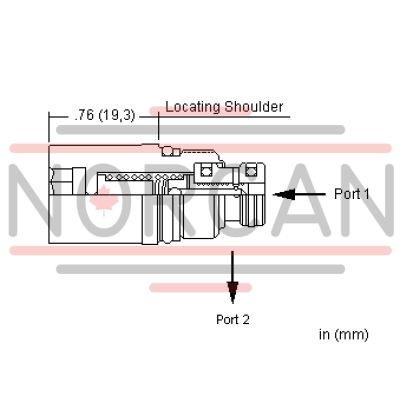

Cavity	T-8A
Series	P
Capacity	.5 gpm2 L/min.
Maximum Operating Pressure	5000 psi350 bar
Valve Internal Hex Size	5/16 in.8 mm
Valve Installation Torque	25 - 30 lbf ft35 - 40 Nm
Seal kit - Cartridge	Viton: 990-008-006

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
