The Sun Hydraulics FXAMXBV (FXAMXBV) is a fixed orifice, pressure-compensated flow control valve designed for precise flow regulation in meter-in or meter-out applications, especially where there are significant pressure fluctuations. This insert-style valve is intended to be embedded within a manifold or actuator, utilizing the T8DP cavity design for optimal integration. It can handle a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2. The valve offers various flow rate options: A Flow Rate at 2.0 in\u00b3/min (32 cc/min), B Flow Rate at 2.5 in\u00b3/min (40 cc/min), D and F Flow Rates at 3.0 in\u00b3/min (48 cc/min), H and J Flow Rates at 4.0 in\u00b3/min (64 cc/min), and L Flow Rate at 4.5 in\u00b3/min (72 cc/min). The sharp-edged orifice design minimizes flow variations due to changes in viscosity, ensuring consistent performance across different conditions. Incorporating Sun's floating style construction, the FXAMXBV minimizes the risk of internal parts binding from excessive installation torque or variations in cavity/cartridge machining. With a capacity of .5 gpm (2 L/min) and requiring an installation torque between 20-25 lbf ft (27-34 Nm), this valve provides reliable performance for demanding hydraulic systems. The THRU port can serve as an outlet with port 2 blocked, offering flexibility in application setup. Designed to maintain accuracy within \u00b110%, it performs best within the lower two-thirds of its range, making it suitable for applications requiring precise flow control under varying pressures.

Description

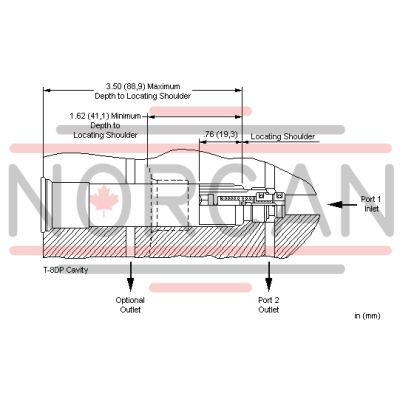

Fixed-orifice, pressure-compensated flow controls provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. A variety of flow rates are available. The THRU port at the top of the valve can be used as the outlet with port 2 blocked. See cavity drawing for details.

The sharp-edged orifice design minimizes flow variations due to viscosity changes.
This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-8DP cavity contains detailed information which should be studied closely when applying this valve.
Will accept 5000 psi (350 bar) at ports 1 and 2.
Flow Tolerances A Flow Rate +/- 2.0 in³/min. (+/- 32 cc/min.) B Flow Rate +/- 2.5 in³/min. (+/- 40 cc/min.) D and F Flow Rates +/- 3.0 in³/min. (+/- 48 cc/min.) H and J Flow Rates +/- 4.0 in³/min. (+/- 64 cc/min.) L Flow Rate +/- 4.5 in³/min. (+/- 72 cc/min.)
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-8DP
Series	P
Capacity	.5 gpm2 L/min.
Maximum Operating Pressure	5000 psi350 bar
Valve Internal Hex Size	5/16 in.8 mm
Valve Installation Torque	20 - 25 lbf ft27 - 34 Nm

Show FAQ

What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
