SUN HYDRAULICS
HEE

$147.13 USD

SUN HYDRAULICS
Material:HEE
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

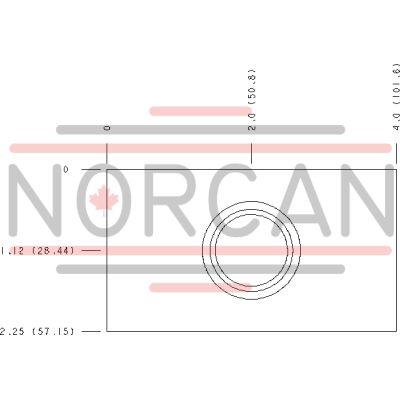

The Sun Hydraulics HEE (Material Number: HEE) is a high-capacity line mount manifold designed for hydraulic systems that require efficient fluid control and distribution. This model features a ninety-degree body type with a high-capacity port 3 and an additional gauge port, making it suitable for complex hydraulic applications where precise pressure monitoring is necessary. The manifold is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and strength, ensuring durability in various environments. It includes one open cavity with a T-17A cavity type and offers a 1 NPTF port size, which facilitates easy integration into existing hydraulic systems. The HEE manifold has been designed with practicality in mind, featuring through-mounting holes with a diameter of .42 inches (10.7 mm) and accommodating up to 22 mounting holes to ensure secure installation. This product does not require anodizing due to the inherent corrosion-resistant properties of the aluminum alloy used, thus maintaining its integrity even under challenging conditions without compromising on fatigue life. This manifold is ideally suited for applications that demand high flow rates and reliable performance under pressure conditions up to 3000 psi (210 bar), making it a versatile choice for various hydraulic setups. The design considerations ensure that the manifold can handle significant operational demands while providing consistent performance over its lifespan.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree with high capacity port 3 and gauge portNinety degree with high capacity port 3 and gauge port
Mounting Hole Diameter	.42 in.10,7 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-17A
Port Size	1" NPTF1" NPTF

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
