SUN HYDRAULICS
LAY

$160.33 USD

SUN HYDRAULICS
Material:LAY
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

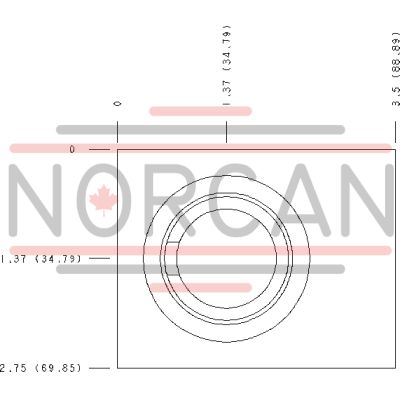

The Sun Hydraulics LAY (Material Number: LAY) is a line mount manifold designed for high flow hydraulic applications. This model features a ninety-degree body with a gauge port, making it suitable for systems requiring precise monitoring and control of hydraulic pressure. The manifold has a T18A cavity and is equipped with one 1 1/4 BSPP port size, ensuring compatibility with various hydraulic components. It includes eleven mounting holes, each with a diameter of .41 inches (10.4 mm), allowing for secure installation in diverse setups. The mounting holes are designed to go through the body, providing flexibility in mounting configurations. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance and mechanical strength while maintaining cost-effectiveness. The use of this aluminum alloy ensures durability in demanding environments without the need for anodizing, which can introduce issues such as increased breakaway torque and reduced fatigue life due to crack initiation under pressure. The Sun Hydraulics LAY manifold is engineered to handle pressures up to 3000 psi (210 bar), making it suitable for various hydraulic systems while emphasizing the importance of considering maximum system pressure during design and implementation. Its design caters to applications that require robust performance without compromising on material integrity or system safety. This product is part of Sun's standard line mount manifolds specifically crafted for high flow valves, providing an essential component in creating efficient and reliable hydraulic systems.

Description

Body Type	Line mountLine mount
Interface	NoneNone
Body Features	Ninety degree with gauge portNinety degree with gauge port
Mounting Hole Diameter	.41 in.10,4 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	11
Open Cavities	11
Cavity	T-18A
Port Size	1 1/4" BSPP1 1/4" BSPP

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
