SUN HYDRAULICS
LD6

$388.58 USD

SUN HYDRAULICS
Material:LD6
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

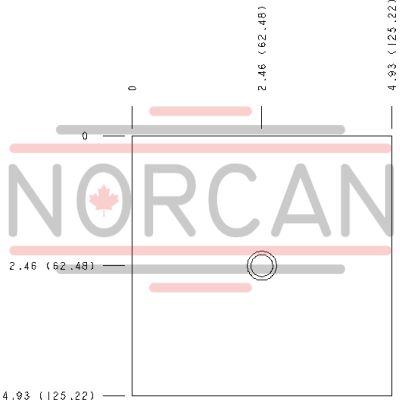

The Sun Hydraulics LD6 (Material Number: LD6) is a versatile line mount manifold specifically designed for cartridges utilizing the T18A cavity. This model features a robust construction with a 1.50 SAE C62 interface and includes through port 1 with an additional gauge port for enhanced monitoring capabilities. The manifold is manufactured from 6061T651 aluminum, known for its excellent corrosion resistance and availability in various shapes and sizes, although it is not anodized to avoid complications related to cost, logistics, and reduced fatigue life. The manifold accommodates up to 22 mounting holes threaded in M12x1.75 6H metric models with a depth of .75 inches (19 mm), supporting secure installation and integration into hydraulic systems. The LD6 model is engineered with open cavities that can house up to 11 cartridges, ensuring flexibility in hydraulic circuit design. It supports port sizes of 1 12 Code 62, making it suitable for high-flow applications while maintaining pressure ratings up to a maximum of 3000 psi (210 bar). This limitation is due to the inherent properties of the aluminum material used in its construction. The Sun Hydraulics LD6 manifold is ideal for use in hydraulic systems requiring reliable performance under moderate pressure conditions. Its design facilitates easy installation and maintenance while offering compatibility with various cartridge types within the specified cavity size.

Description

All cartridges utilizing the T-18A cavity can be installed in this T-18AU manifold.

Body Type	Line mountLine mount
Interface	1.50 SAE C621.50 SAE C62
Body Features	Through port 1 with gauge portThrough port 1 with gauge port
Mounting Hole Thread	M12x1.75 - 6H (metric models)M12x1.75 - 6H (metric models)
Mounting Hole Depth	.75 in.19 mm
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-18AU
Port Size	1 1/2" Code 621 1/2" Code 62

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
