SUN HYDRAULICS
NCFBLBN
$118.94 USD
- SUN HYDRAULICS
- Material:NCFBLBN
- Model:NCFB-LBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

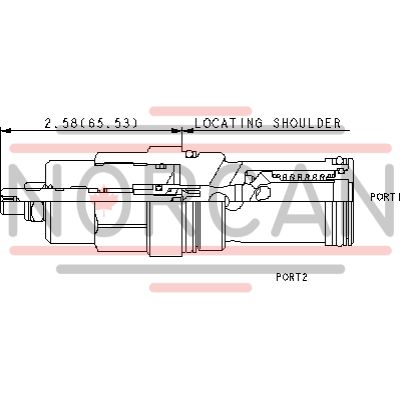

The Sun Hydraulics NCFBLBN (NCFBLBN) is a needle valve with a reverse flow check, designed to provide fully adjustable orifice regulation of hydraulic fluid flow. It features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. This model is not pressure compensated, meaning the flow regulation depends on the pressure differential across ports 1 and 2. The needle valve's sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, and its balanced adjustment mechanism ensures easy adjustments even under high pressure. The Sun Hydraulics NCFBLBN supports a maximum operating pressure of 5000 psi (350 bar) and can handle a capacity of up to 30 gpm (120 L/min). It is designed with Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. The valve's physical specifications include a hex size of 1-1/4 inches (31.8 mm) for installation torque between 150-160 lbf ft (203-217 Nm), and an adjustment screw internal hex size of 5/32 inches (4 mm). The model weighs approximately 1.30 lb (0.60 kg) and includes a Viton seal kit for enhanced durability under various operating conditions. This cartridge is interchangeable with other two-port flow control cartridges within the same series, providing flexibility in hydraulic system design while maintaining consistent performance standards.
The Sun Hydraulics NCFBLBN (NCFBLBN) is a needle valve with a reverse flow check, designed to provide fully adjustable orifice regulation of hydraulic fluid flow. It features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. This model is not pressure compensated, meaning the flow regulation depends on the pressure differential across ports 1 and 2. The needle valve's sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, and its balanced adjustment mechanism ensures easy adjustments even under high pressure. The Sun Hydraulics NCFBLBN supports a maximum operating pressure of 5000 psi (350 bar) and can handle a capacity of up to 30 gpm (120 L/min). It is designed with Sun's floating style construction to prevent internal parts binding due to excessive installation torque or machining variations. The valve's physical specifications include a hex size of 1-1/4 inches (31.8 mm) for installation torque between 150-160 lbf ft (203-217 Nm), and an adjustment screw internal hex size of 5/32 inches (4 mm). The model weighs approximately 1.30 lb (0.60 kg) and includes a Viton seal kit for enhanced durability under various operating conditions. This cartridge is interchangeable with other two-port flow control cartridges within the same series, providing flexibility in hydraulic system design while maintaining consistent performance standards.
Needle valves with reverse-flow check are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1. They are not pressure compensated.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 30 gpm (.38 inch)120 L/min. (9,7 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 drops/min.0,7 cc/min. |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.30 lb0,60 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
