SUN HYDRAULICS
NFCCKIN
$50.14 USD
- SUN HYDRAULICS
- Material:NFCCKIN
- Model:NFCC-KIN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

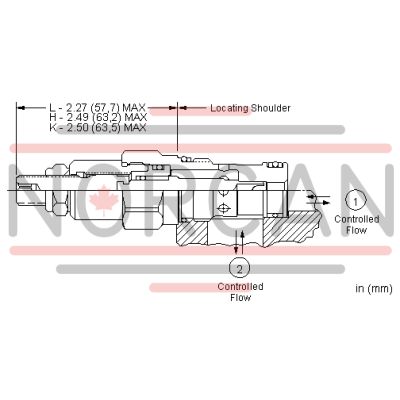

The Sun Hydraulics NFCCKIN (Material Number: NFCCKIN) is a versatile needle valve designed for precise flow regulation in hydraulic systems. This fully adjustable orifice valve allows for infinite adjustment from a fully closed position to the maximum orifice diameter, offering flexibility in controlling flow rates. It is not pressure compensated, making it suitable for use as both a flow control and a shutoff valve. The NFCCKIN model features a bidirectional flow path with a preferred direction from port 1 to 2, ensuring compatibility with other flow control devices. Its balanced adjustment mechanism facilitates easy adjustments even under high pressure conditions, while the sharp-edged orifice design minimizes variations due to changes in fluid viscosity. This needle valve is constructed to fit into T-13A cavities and supports a capacity of up to 7 gallons per minute (28 liters per minute) with an orifice size of 0.19 inches (4.8 mm). It can withstand a maximum operating pressure of 5000 psi (350 bar). The adjustment range spans 5.5 counterclockwise turns from fully closed to fully open, providing precise control over the flow rate. The NFCCKIN model has a compact design with a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). The internal hex size for the adjustment screw is 5/32 inches (4 mm), and the locknut hex size is 9/16 inches (15 mm), requiring a torque of 80-90 lbf in (9-10 Nm). Additionally, this model can be equipped with EPDM seals for use in systems utilizing phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as it may damage the seals. With its robust construction and precise control capabilities, the Sun Hydraulics NFCCKIN needle valve is an essential component for optimizing hydraulic system performance.
The Sun Hydraulics NFCCKIN (Material Number: NFCCKIN) is a versatile needle valve designed for precise flow regulation in hydraulic systems. This fully adjustable orifice valve allows for infinite adjustment from a fully closed position to the maximum orifice diameter, offering flexibility in controlling flow rates. It is not pressure compensated, making it suitable for use as both a flow control and a shutoff valve. The NFCCKIN model features a bidirectional flow path with a preferred direction from port 1 to 2, ensuring compatibility with other flow control devices. Its balanced adjustment mechanism facilitates easy adjustments even under high pressure conditions, while the sharp-edged orifice design minimizes variations due to changes in fluid viscosity. This needle valve is constructed to fit into T-13A cavities and supports a capacity of up to 7 gallons per minute (28 liters per minute) with an orifice size of 0.19 inches (4.8 mm). It can withstand a maximum operating pressure of 5000 psi (350 bar). The adjustment range spans 5.5 counterclockwise turns from fully closed to fully open, providing precise control over the flow rate. The NFCCKIN model has a compact design with a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). The internal hex size for the adjustment screw is 5/32 inches (4 mm), and the locknut hex size is 9/16 inches (15 mm), requiring a torque of 80-90 lbf in (9-10 Nm). Additionally, this model can be equipped with EPDM seals for use in systems utilizing phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as it may damage the seals. With its robust construction and precise control capabilities, the Sun Hydraulics NFCCKIN needle valve is an essential component for optimizing hydraulic system performance.
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 7 gpm (.19 inch)28 L/min. (4,8 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
