SUN HYDRAULICS
NFCCLIE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

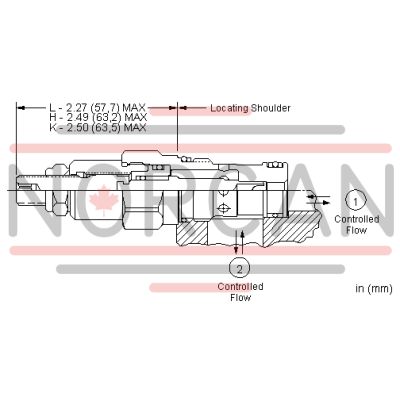

The Sun Hydraulics NFCCLIE (NFCCLIE) is a versatile needle valve designed to regulate flow through fully adjustable orifices. This model allows for precise control from fully closed to the maximum orifice diameter, functioning effectively as both a flow control and a shutoff valve. It features a balanced adjustment mechanism that facilitates easy adjustments even under high pressure conditions. The sharp-edged orifice design ensures minimal flow variations due to changes in fluid viscosity, and the bidirectional flow path offers flexibility, with the preferred direction being from port 1 to port 2 for compatibility with other flow controls. This needle valve is non-pressure compensated, meaning that the fixed orifice size regulates flow proportionally to the square root of the pressure differential across ports 1 and 2. The NFCCLIE model boasts a maximum operating pressure of 5000 psi (350 bar) and can handle a capacity of up to 7 gpm (.19 inch/28 L/min). Its compact design includes a valve hex size of .78 inches (22.2 mm) and requires an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut has a hex size of 9/16 inches (15 mm) with a torque specification of 80-90 lbf in (9-10 Nm). The model weighs .30 lb (.15 kg) and is compatible with EPDM seals for systems using phosphate ester fluids, although exposure to petroleum-based substances should be avoided to prevent seal damage.
