SUN HYDRAULICS
NFCCYCE
$184.76 USD
- SUN HYDRAULICS
- Material:NFCCYCE
- Model:NFCC-YCE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics NFCCYCE (NFCCYCE) is a precision-engineered needle valve designed to offer fully adjustable flow control in hydraulic systems. This versatile component is capable of regulating flow by adjusting the orifice size, which can be finely tuned from fully closed to the maximum diameter, providing users with precise control over fluid dynamics. The valve is not pressure compensated, making it suitable for use as either a flow control or shutoff valve. Its design allows for bidirectional flow, although the optimal path is from port 1 to port 2 to ensure compatibility with other flow controls. The NFCCYCE model features a balanced adjustment mechanism that facilitates easy operation even under high-pressure conditions up to 5000 psi (350 bar). With a capacity of 7 gpm (.19 inch/28 L/min), this needle valve is ideal for applications requiring accurate flow regulation without leakage when in the shutoff position. The sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance across different operating conditions. For enhanced durability and compatibility with various fluid types, the cartridge can be configured with EPDM seals specifically for phosphate ester fluids; however, it should not be exposed to petroleum-based substances as these can damage the seals. The installation requires specific torque settings: 30-35 lbf ft (41-47 Nm) for installation and 80-90 lbf in (9-10 Nm) for the locknut. This model weighs .30 lb (0.15 kg) and features an internal hex adjustment screw size of 5/32 inch (4 mm). The Sun Hydraulics NFCCYCE needle valve offers reliable performance and adaptability in hydraulic systems where precise fluid control is critical.
The Sun Hydraulics NFCCYCE (NFCCYCE) is a precision-engineered needle valve designed to offer fully adjustable flow control in hydraulic systems. This versatile component is capable of regulating flow by adjusting the orifice size, which can be finely tuned from fully closed to the maximum diameter, providing users with precise control over fluid dynamics. The valve is not pressure compensated, making it suitable for use as either a flow control or shutoff valve. Its design allows for bidirectional flow, although the optimal path is from port 1 to port 2 to ensure compatibility with other flow controls. The NFCCYCE model features a balanced adjustment mechanism that facilitates easy operation even under high-pressure conditions up to 5000 psi (350 bar). With a capacity of 7 gpm (.19 inch/28 L/min), this needle valve is ideal for applications requiring accurate flow regulation without leakage when in the shutoff position. The sharp-edged orifice design minimizes variations due to viscosity changes, ensuring consistent performance across different operating conditions. For enhanced durability and compatibility with various fluid types, the cartridge can be configured with EPDM seals specifically for phosphate ester fluids; however, it should not be exposed to petroleum-based substances as these can damage the seals. The installation requires specific torque settings: 30-35 lbf ft (41-47 Nm) for installation and 80-90 lbf in (9-10 Nm) for the locknut. This model weighs .30 lb (0.15 kg) and features an internal hex adjustment screw size of 5/32 inch (4 mm). The Sun Hydraulics NFCCYCE needle valve offers reliable performance and adaptability in hydraulic systems where precise fluid control is critical.
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.

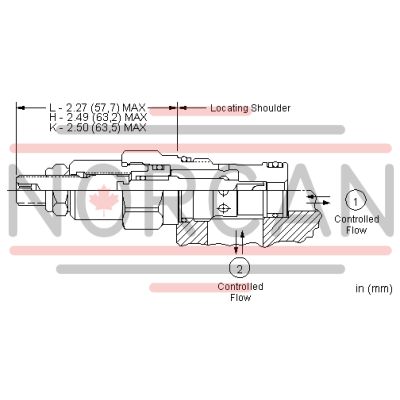

- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 7 gpm (.19 inch)28 L/min. (4,8 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
