SUN HYDRAULICS
NFCCYDV
$67.51 USD
- SUN HYDRAULICS
- Material:NFCCYDV
- Model:NFCC-YDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

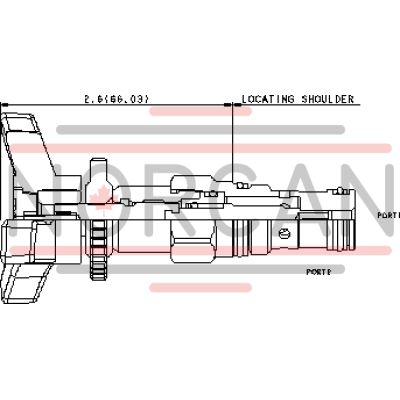

The Sun Hydraulics NFCCYDV (NFCCYDV) is a versatile needle valve designed for precise flow regulation and shutoff applications. This fully adjustable orifice valve allows infinite adjustment from fully closed to the maximum orifice diameter, making it ideal for controlling flow in various hydraulic systems. The NFCCYDV is not pressure compensated and operates by regulating flow proportional to the square root of the pressure differential across ports 1 and 2. It features a balanced adjustment mechanism that facilitates easy adjustments even under high pressures, and its sharp-edged orifice design minimizes flow variations due to changes in fluid viscosity. The bidirectional flow path of this valve prefers the direction from port 1 to port 2, ensuring compatibility with other flow control devices. When fully closed, the adjustment mechanism ensures no leakage. This model is compatible with EPDM seals for use in systems utilizing phosphate ester fluids; however, exposure to petroleum-based substances should be avoided to prevent seal damage. This Series 1 cartridge has a capacity of up to 7 gpm (28 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It requires an installation torque of 30-35 lbf ft (41-47 Nm), with an internal hex size for adjustment screws at 5/32 inches (4 mm). The locknut requires a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). The NFCCYDV weighs approximately .30 lb (.15 kg) and uses Viton seal kits for optimal performance.
The Sun Hydraulics NFCCYDV (NFCCYDV) is a versatile needle valve designed for precise flow regulation and shutoff applications. This fully adjustable orifice valve allows infinite adjustment from fully closed to the maximum orifice diameter, making it ideal for controlling flow in various hydraulic systems. The NFCCYDV is not pressure compensated and operates by regulating flow proportional to the square root of the pressure differential across ports 1 and 2. It features a balanced adjustment mechanism that facilitates easy adjustments even under high pressures, and its sharp-edged orifice design minimizes flow variations due to changes in fluid viscosity. The bidirectional flow path of this valve prefers the direction from port 1 to port 2, ensuring compatibility with other flow control devices. When fully closed, the adjustment mechanism ensures no leakage. This model is compatible with EPDM seals for use in systems utilizing phosphate ester fluids; however, exposure to petroleum-based substances should be avoided to prevent seal damage. This Series 1 cartridge has a capacity of up to 7 gpm (28 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). It requires an installation torque of 30-35 lbf ft (41-47 Nm), with an internal hex size for adjustment screws at 5/32 inches (4 mm). The locknut requires a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). The NFCCYDV weighs approximately .30 lb (.15 kg) and uses Viton seal kits for optimal performance.
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 7 gpm (.19 inch)28 L/min. (4,8 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
