SUN HYDRAULICS
NFCCYIE
$187.74 USD
- SUN HYDRAULICS
- Material:NFCCYIE
- Model:NFCC-YIE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

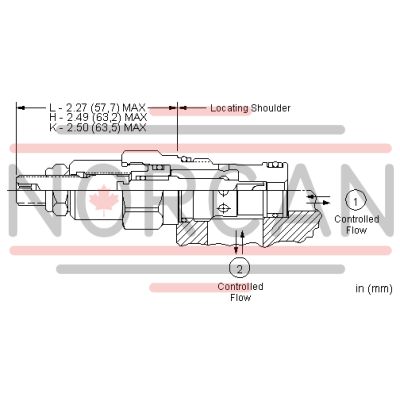

The Sun Hydraulics NFCCYIE (NFCCYIE) is a versatile needle valve designed for precise flow regulation in hydraulic systems. This fully adjustable orifice allows for infinite adjustment from fully closed to the maximum orifice diameter, making it suitable for use as both a flow control and a shutoff valve. The NFCCYIE model is not pressure compensated, meaning the flow through the valve is regulated in proportion to the square root of the pressure differential across ports 1 and 2. It features a balanced adjustment mechanism that ensures easy adjustments even under high-pressure conditions, with a sharp-edged orifice design that minimizes flow variations due to changes in fluid viscosity. This bidirectional flow control valve has a preferred flow path from port 1 to port 2, ensuring compatibility with other interchangeable flow controls. When configured with EPDM seals, it is specifically suited for systems utilizing phosphate ester fluids, although caution should be taken as exposure to petroleum-based fluids can damage these seals. The NFCCYIE model can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of 7 gpm (28 L/min). The valve features an internal hex size adjustment screw and locknut for secure installation and precise control. The compact design includes specific installation requirements such as a valve hex size of .78 inches (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm). The NFCCYIE model weighs approximately .30 lb (.15 kg), making it lightweight yet robust for demanding hydraulic applications. It also comes equipped with Viton seal kit options for enhanced durability and performance in various operating conditions.
The Sun Hydraulics NFCCYIE (NFCCYIE) is a versatile needle valve designed for precise flow regulation in hydraulic systems. This fully adjustable orifice allows for infinite adjustment from fully closed to the maximum orifice diameter, making it suitable for use as both a flow control and a shutoff valve. The NFCCYIE model is not pressure compensated, meaning the flow through the valve is regulated in proportion to the square root of the pressure differential across ports 1 and 2. It features a balanced adjustment mechanism that ensures easy adjustments even under high-pressure conditions, with a sharp-edged orifice design that minimizes flow variations due to changes in fluid viscosity. This bidirectional flow control valve has a preferred flow path from port 1 to port 2, ensuring compatibility with other interchangeable flow controls. When configured with EPDM seals, it is specifically suited for systems utilizing phosphate ester fluids, although caution should be taken as exposure to petroleum-based fluids can damage these seals. The NFCCYIE model can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of 7 gpm (28 L/min). The valve features an internal hex size adjustment screw and locknut for secure installation and precise control. The compact design includes specific installation requirements such as a valve hex size of .78 inches (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm). The NFCCYIE model weighs approximately .30 lb (.15 kg), making it lightweight yet robust for demanding hydraulic applications. It also comes equipped with Viton seal kit options for enhanced durability and performance in various operating conditions.
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 7 gpm (.19 inch)28 L/min. (4,8 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
