SUN HYDRAULICS
NFCDHFV
$58.47 USD
- SUN HYDRAULICS
- Material:NFCDHFV
- Model:NFCD-HFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

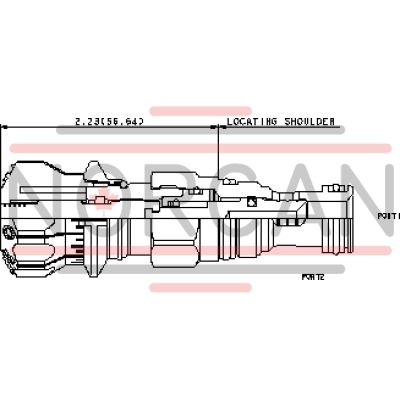

The Sun Hydraulics NFCDHFV (Material Number: NFCDHFV) is a precision needle valve designed to regulate flow through fully adjustable orifices. It allows infinite adjustment from fully closed to the maximum orifice diameter but is not pressure compensated. This model can function as either a flow control or shutoff valve. It features bidirectional flow capability, with the preferred direction being port 1 to 2 for compatibility with other flow controls. The valve's sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, and its balanced adjustment mechanism ensures easy operation even under high pressure conditions. The NFCDHFV can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 20 gpm (80 L/min). The valve requires an installation torque of 30-35 lbf ft (41-47 Nm) and features an internal hex size of 5/32 in (4 mm) for the adjustment screw, with a locknut hex size of 9/16 in (15 mm). It includes EPDM seals suitable for systems using phosphate ester fluids; however, these seals are not compatible with petroleum-based fluids. The valve weighs approximately 0.30 lb (0.15 kg) and uses Viton seal kits for maintenance purposes. This needle valve is part of Sun Hydraulics' Series 1 cartridges, known for their physical and functional interchangeability across similar frames and cavities, though extension dimensions may vary from the mounting surface.
The Sun Hydraulics NFCDHFV (Material Number: NFCDHFV) is a precision needle valve designed to regulate flow through fully adjustable orifices. It allows infinite adjustment from fully closed to the maximum orifice diameter but is not pressure compensated. This model can function as either a flow control or shutoff valve. It features bidirectional flow capability, with the preferred direction being port 1 to 2 for compatibility with other flow controls. The valve's sharp-edged orifice design minimizes variations in flow due to changes in fluid viscosity, and its balanced adjustment mechanism ensures easy operation even under high pressure conditions. The NFCDHFV can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 20 gpm (80 L/min). The valve requires an installation torque of 30-35 lbf ft (41-47 Nm) and features an internal hex size of 5/32 in (4 mm) for the adjustment screw, with a locknut hex size of 9/16 in (15 mm). It includes EPDM seals suitable for systems using phosphate ester fluids; however, these seals are not compatible with petroleum-based fluids. The valve weighs approximately 0.30 lb (0.15 kg) and uses Viton seal kits for maintenance purposes. This needle valve is part of Sun Hydraulics' Series 1 cartridges, known for their physical and functional interchangeability across similar frames and cavities, though extension dimensions may vary from the mounting surface.
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 20 gpm (.33 inch)80 L/min. (8,4 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Expands Corrosion-Resistant Solutions
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Check, Flow Control, and Priority Flow Control Valves
- Units of Measure, Settings, and Conversions
- Cartridges: Materials of Construction
- Cavity Information (S-171) and Tooling
- Fluid and Temperature Recommendations
- Sun's Floating Style Screw-In Cartridge
- Performance Data
- Sun Model Code Explanation; 999-901-334
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
