SUN HYDRAULICS
NFECKFN
$118.94 USD
- SUN HYDRAULICS
- Material:NFECKFN
- Model:NFEC-KFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

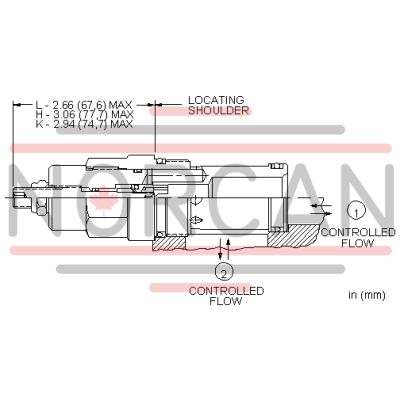

The Sun Hydraulics NFECKFN (NFECKFN) is a highly versatile needle valve designed for precise flow regulation in hydraulic systems. It features a fully adjustable orifice that can be set from completely closed to the maximum orifice diameter, providing infinite adjustability. This model is not pressure compensated, making it suitable for use as both a flow control and shutoff valve. The NFECKFN needle valve is built for interchangeability with other 2-port flow control cartridges, maintaining the same flow path and cavity dimensions for ease of integration into existing systems. Although cartridge extension dimensions may vary, this model ensures consistent performance across different installations. The valve operates by regulating flow in proportion to the square root of the pressure differential between ports 1 and 2, thanks to its noncompensating design. It includes a balanced adjustment mechanism that facilitates easy adjustments even under high pressures, while its sharp-edged orifice minimizes flow variations due to changes in fluid viscosity. The bidirectional flow path is optimized for use from port 1 to port 2, enhancing compatibility with other controls. When fully closed, the adjustment mechanism ensures zero leakage, adding reliability to its operation as a shutoff valve. Cartridges with EPDM seals are suitable for systems using phosphate ester fluids but should avoid petroleum-based fluids to prevent seal damage. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 30 gpm (120 L/min), this valve meets demanding hydraulic requirements. Additional specifications include an installation torque range of 150-160 lbf ft (203-217 Nm), an internal hex size of 5/32 inches (4 mm) for the adjustment screw, and a locknut torque range of 80-90 lbf in (9-10 Nm).
The Sun Hydraulics NFECKFN (NFECKFN) is a highly versatile needle valve designed for precise flow regulation in hydraulic systems. It features a fully adjustable orifice that can be set from completely closed to the maximum orifice diameter, providing infinite adjustability. This model is not pressure compensated, making it suitable for use as both a flow control and shutoff valve. The NFECKFN needle valve is built for interchangeability with other 2-port flow control cartridges, maintaining the same flow path and cavity dimensions for ease of integration into existing systems. Although cartridge extension dimensions may vary, this model ensures consistent performance across different installations. The valve operates by regulating flow in proportion to the square root of the pressure differential between ports 1 and 2, thanks to its noncompensating design. It includes a balanced adjustment mechanism that facilitates easy adjustments even under high pressures, while its sharp-edged orifice minimizes flow variations due to changes in fluid viscosity. The bidirectional flow path is optimized for use from port 1 to port 2, enhancing compatibility with other controls. When fully closed, the adjustment mechanism ensures zero leakage, adding reliability to its operation as a shutoff valve. Cartridges with EPDM seals are suitable for systems using phosphate ester fluids but should avoid petroleum-based fluids to prevent seal damage. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 30 gpm (120 L/min), this valve meets demanding hydraulic requirements. Additional specifications include an installation torque range of 150-160 lbf ft (203-217 Nm), an internal hex size of 5/32 inches (4 mm) for the adjustment screw, and a locknut torque range of 80-90 lbf in (9-10 Nm).
Needle valves are fully adjustable orifices used to regulate flow. They are infinitely adjustable from fully closed up to the maximum orifice diameter. They are not pressure compensated and may be used as flow controls or as shutoff valves.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- The flow path through this valve is bi-directional. The preferred path is port 1 to 2, to allow interchangeability with other flow controls.
- There is no leakage when the adjustment mechanism is turned to the shut-off position.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 30 gpm (.38 inch)120 L/min. (9,7 mm) |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.30 lb0,60 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
