SUN HYDRAULICS
PAD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

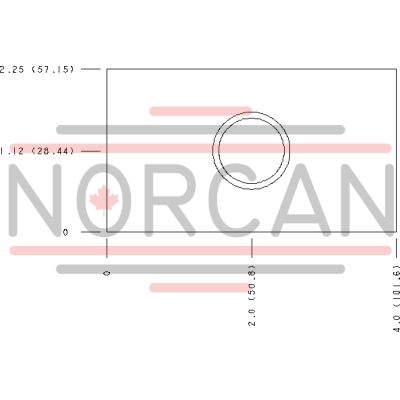

The Sun Hydraulics PAD (Material Number: PAD) is a versatile line mount manifold designed for hydraulic systems requiring efficient fluid control and distribution. This model features a ninety-degree design with an integrated gauge port, facilitating easy monitoring of system pressure. The manifold is constructed from 6061T651 aluminum, known for its excellent corrosion resistance and strength, making it suitable for demanding environments. With a mounting hole diameter of 0.41 inches (10.4 mm) and a depth that goes through the body, it ensures secure installation with two mounting holes available. The PAD model includes one open cavity designed to accommodate T-23A cartridges, enhancing its adaptability to various system requirements. The manifold's port size is 3/4 NPTF, allowing for compatibility with standard hydraulic fittings and ensuring seamless integration into existing systems. It is essential to note that while the aluminum construction offers durability, the PAD manifold is not rated for pressures exceeding 3000 psi (210 bar). This limitation should be considered when designing or upgrading hydraulic systems to ensure optimal performance and safety. Sun Hydraulics' decision not to anodize their aluminum bodies stems from considerations related to cost, logistics, consistency, and the potential impact on fatigue life. The non-anodized finish maintains the integrity of the material under pressure without compromising longevity due to induced fatigue cracks. This makes the PAD manifold a reliable choice for applications where consistent performance under moderate pressure conditions is paramount. Overall, the Sun Hydraulics PAD provides a robust solution for hydraulic system designers looking for reliable line mount manifolds that offer ease of integration and long-term durability in their applications.
